“Cinematic” doesn’t mean slapping on a matte box and calling it a day: professional productions call for professional solutions. Our Canon C50 Halo Kit is exactly that: a versatile rigging setup that strikes the balance of a clean form factor with a build bursting at the seams with functionality. Covered in accessory mounts and compatible with a range of mounting systems, your C50 rig will truly be ready for anything.

Durable and dependable, there’s only one choice for building the best C50 cage – and you’re looking at it.

No Unexpected Twists

There’s nothing worse than an unreliable rig: the discomfort of watching your expensive hardware wobble in place, no matter how hard you tighten it. For productions where precision is essential, our C50 Bottom Plate won’t let you down. Our anti-twist lip on the front keeps the camera firmly aligned, cutting out the guesswork as to whether you’ve installed everything correctly.

Quick-Release Convenience

The Halo Kit features extra compatibility and functionality, giving you plenty of options. Alongside the Bottom Plate’s built-in Arca Swiss plate, the Universal Dovetail features unique dual compatibility with Manfrotto and DJI receivers – making it effortless to switch between mounts. These two – with the Arca Receiver as the middleman - mean you can quick release your rig from a mount, and your camera from the rig itself.

Clean Rigging

Of course, the main point of a cage is adding accessories to your rig – and in this instance, the Halo Kit spoils you. Choose from your classic bolt-on mounts via 1/4" and 3/8” screw threads – each with anti-twist pin threads – or alternative mounts including MAP M4 points, QD sockets and integrated NATO rails. You’ve got the choice of adding directly to the camera or spacing things out via the Halo: which offers even more rigging real-estate.

Balanced Builds

For a more low-profile setup more true to the C50’s form factor, you’ve still got plenty of rigging options. Our Left and Right Side Plates strike a balance between hugging the camera body and clearance for accessorising. The Left Side Plate gives you space to access the various inputs on the side of the C50, as well as easy space for attaching the included C50 HDMI Clamp so that you never lose signal.

Easy Handling

For a comfortable overhead grip, you have plenty of choice. Attach a compatible Top Handle via the Halo – with both NATO and 1/4"-20 mounting options – or use the stock C50 top handle. We’ve carefully spaced the Halo to not clash with the handle, so you’ll be able to use both cleanly.

Part of the Canon C50 System

Build a rig that can fit in your pocket with the Bright Tangerine Canon C50 range: with an array of carefully designed and convenient mounting options.

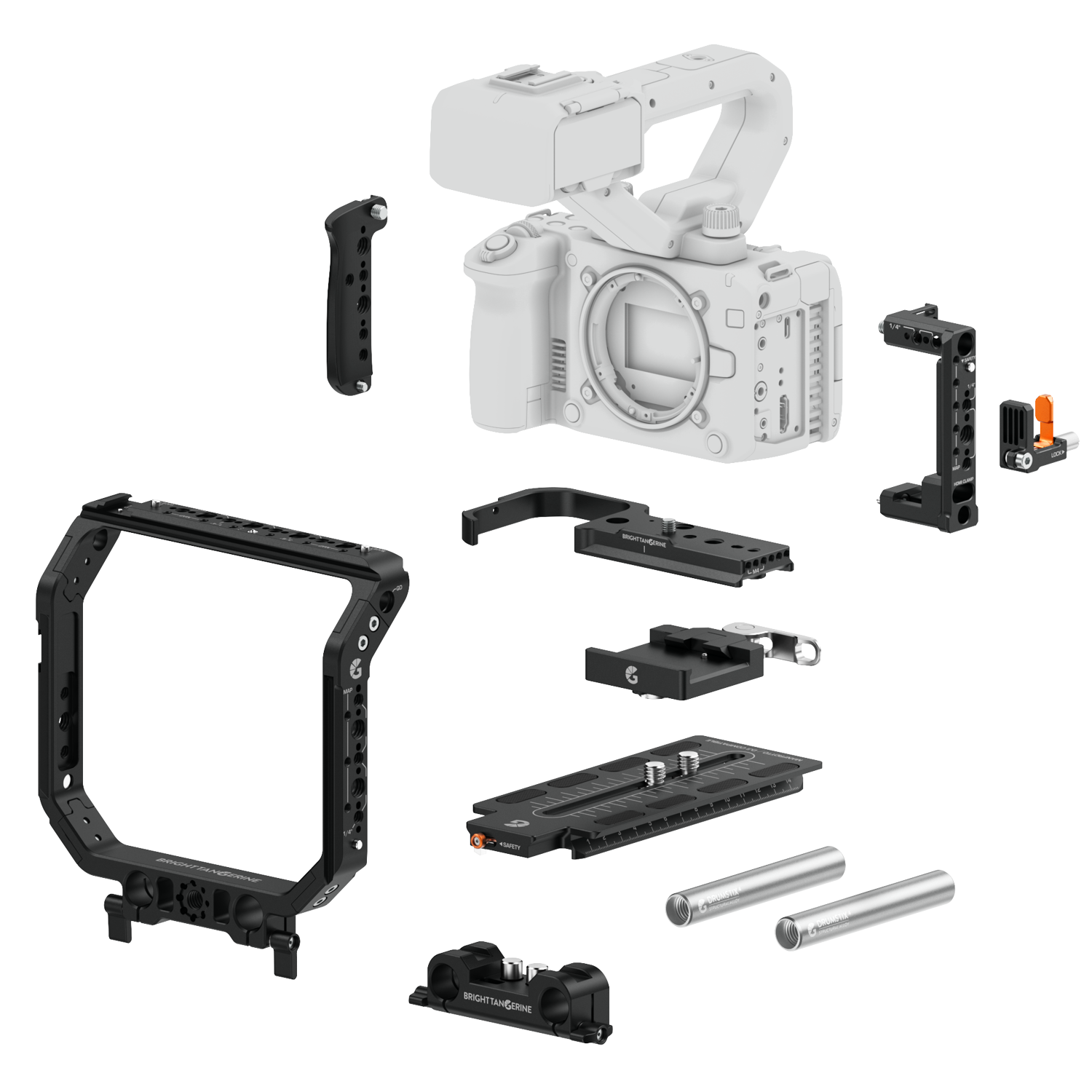

The Canon C50 Halo Kit comes with all required components and screws. You will require your own 2.5mm, 3mm, 4mm Hex Key in order to install it.

15mm LWS Rod Bracket to Dovetail

1. Align the two 3/8” screws on the top of the rod bracket with the threads on the base of the dovetail.

2. Use a 4mm Hex Key to tighten both screws into place.

Rods to Rod Bracket

1. Slide the 15mm rods into their bracket until correctly positioned.

2. Use the lever clamps to tighten each bracket and secure the rods in place.

Halo to Rods

1. Slide the completed Halo onto the 15mm rods.

2. Use the two lever clamps to tighten each bracket when in the optimal position.

Bottom Plate to Camera

1. Align the captive 1/4" screw with the thread on the base of the C50 – the Bottom Plate should match the shape of the camera base with the Bright Tangerine logo facing forward on the camera.

2. Use the included flathead screwdriver to tighten the screw and secure the camera to the Bottom Plate.

Arca Receiver to Universal Dovetail

1. Align the Receiver in the central channel of the Universal Dovetail and insert the two 1/4"-20 screws.

2. Use a flathead screwdriver secure the two together.

Bottom Plate to Arca Receiver

1. Clip the Bottom Plate into the Receiver and tighten the lever clamp.

Right Side Plate to Camera

1. Align the captive 1/4" screw on the top of the Side Plate with the screw thread on the top-right of the C50.

2. Use a flathead screwdriver to secure the Side Plate to the camera.

3. Next, align the screw on the bottom of the Right Side Plate with the mounting thread on the Bottom Plate.

4. Use a 2.5mm Hex Key to secure it in place.

Left Side Plate to Camera

1. Align the screw on the bottom of the Side Plate with the thread on the left-hand side of the Bottom Plate – the writing on the Side Plate should be facing upwards.

2. Use a 3mm Hex Key to secure the Side Plate in place.

3. Align the top screw with the thread on the top-left of the C50 – just below the camera strap mount.

HDMI Clamp to Side Plate<

1. Align the screw thread of the HDMI Clamp with the marked gap on the Side Plate and use a 3mm Hex Key to loosely mount the Clamp in place.

2. Insert your HDMI cable and align the Clamp so that the flat base of the cable is flush with the Clamp.

3. Use the 3mm Hex Key to fully tighten the Clamp to the Side Plate.

4. Secure the HDMI cable in place by tightening the thumbscrew.

The Canon C50 Halo Kit is designed to work with the Canon C50, but features universal components that can be used with any camera. The Halo cage and Universal Dovetail combination can be used with any other camera system.
