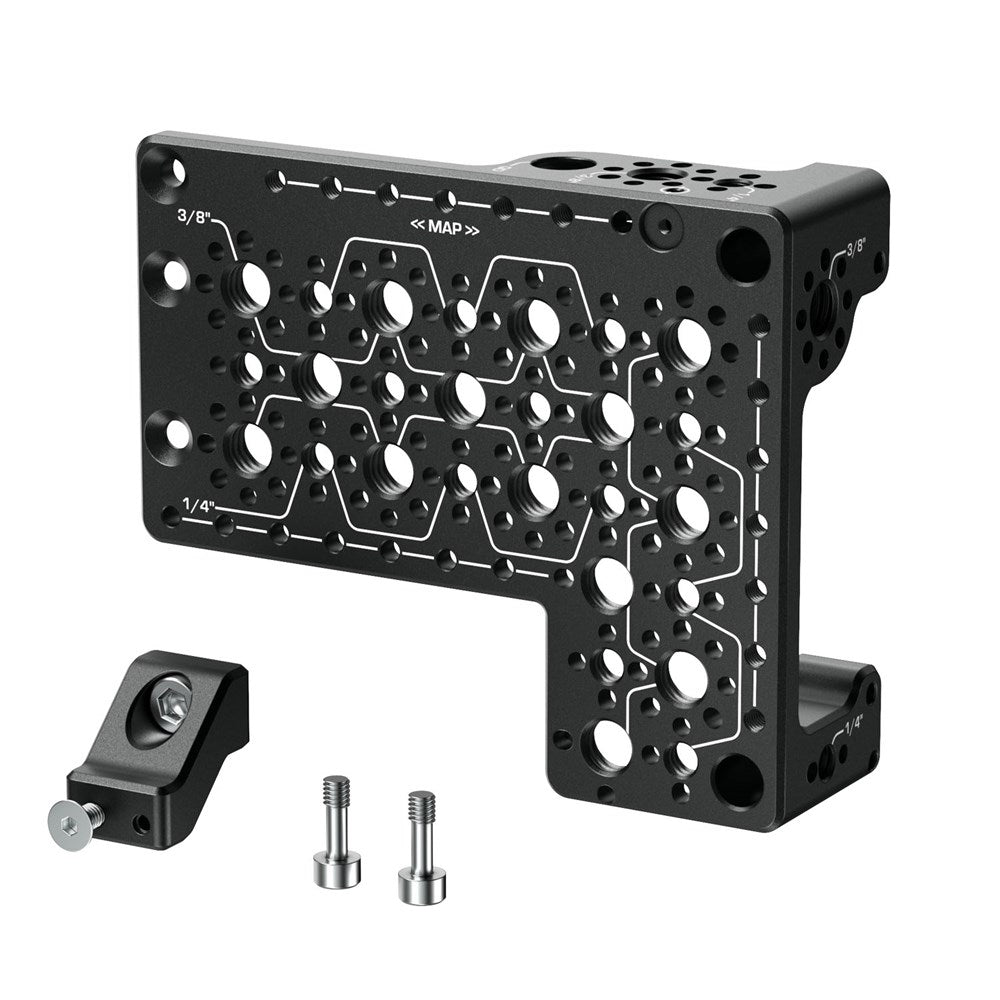

The RED KOMODO is a fairly compact camera, which is great – most of the time. On those occasions where you need a bit more rigging real estate, the RED KOMODO-X Right Side Plate is the right choice. The Side Plate adds a huge plane of accessory mounting points; including 1/4" and 3/8” anti-twist threads as well as MAP M4 points and QD sockets.

Built from top-grade aluminium, the Right Side Plate ensures that you are ready for whatever the call sheet calls for.

Clean Rigging

The Right Side Plate is a large flat surface plate: giving you a range of rigging options. For standard accessories, bolt-on components to the selection of 1/4" and 3/8” screw threads – each with anti-twist locating points. For quick-release camera straps, the top of the Side Plate has a QD socket, as well as a border of MAP M4 points. For accurate focus pulling, the Right Side Plate features a film plane hook slot.

Expand the Possibilities

If you find the Right Side Plate just isn’t enough, you can easily add more to create a truly massive RED rig. A Rear Cheese Plate can be fitted to the back, for extra real estate on the same plane. Alternatively, top things out with our Rear Top Plate. Both are installed with a handful of twists of a Hex Key, meaning you’re only ever a few moments away from a bigger rig.

Adaptor-Friendly

No matter what lens you’re working with, from Angénieux to Zeiss, the Right Side Plate can accommodate a range of Lens Adaptors and Supports. The front mounting points are compatible with both RED’s first-party Adaptor Mounts, as well as our own range of supports.

Go with the Flow

To your RED rig’s airflow clean, the Right Side Plate is offset from the camera by 28mm. If your camera isn’t running hot, this space can also be used to rig accessories, avoiding clutter on the outside of your camera body.

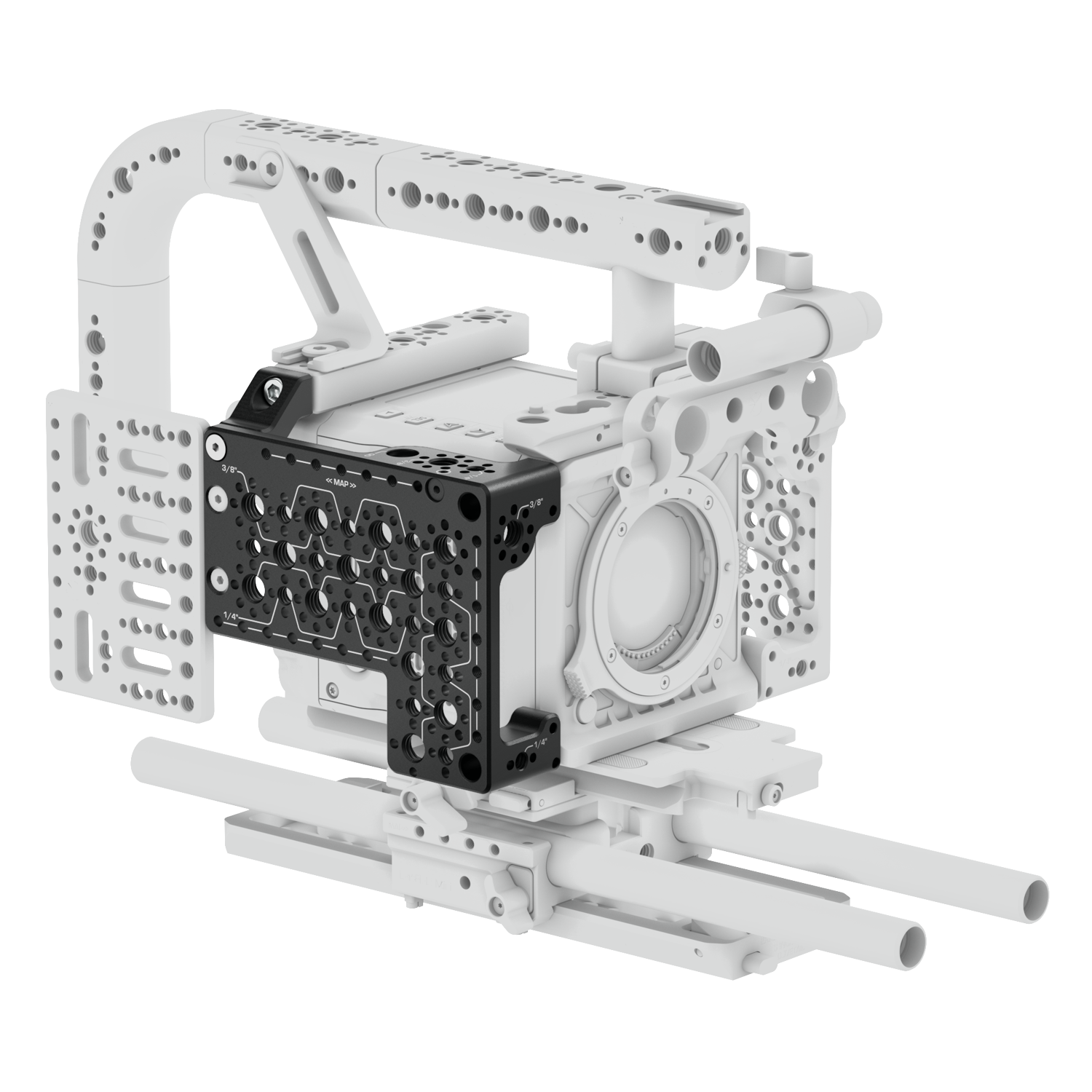

Part of the RED KOMODO System

Enhance the possibilities of your RED KOMODO and KOMODO-X with our range of lightweight and durable accessories: offering new and improved customisation and protection options for any RED filmmaker.

The RED KOMODO-X Right Side Plate comes with all required screws, but you will require your own 3mm Hex Key in order to install it, as well as a 2.5mm and 4mm Hex Key to add the Rear Top Bracket.

Side Plate to Camera

1. Align the Side Plate with the front-right of the KOMODO camera body.

2. Use a 3mm Hex Key to screw the Side Plate into place.

Rear Top Plate to Side Plate

1. Align the support Bracket with the top-left corner of the Right Side Plate, and use a 4mm Hex Key to screw it in place.

2. Align the Rear Top Plate to the Bracket and use a 2.5mm Hex Key to secure it in place.

The RED KOMODO-X Right Side Plate is compatible with the RED KOMODO-X camera and all variations of lens mount – including the newer Nikon Z-Mount option. It can be used with a range of camera accessories and is compatible with a range of lens adaptors and supports, including:

RED PL Adaptor Mounts

B4002.1019 - Vocas RF-PL Support for RED KOMODO

B4002.1020 - KipperTie Revolva/Adapta RF Support for RED KOMODO

B4002.1021 - RED KOMODO Metabones RF-PL Support

B4002.1026 - Canon 0.71x Expander Support for RED KOMODO

Developed and tested in the UK, Bright Tangerine products are made to the highest standard and support productions across the globe. Each product is built with sustainability as a core consideration, which in turn means that products are both long-lasting and high-quality. Our customer service team can assist you, with plenty of resources and support to help you make the most of our products.
