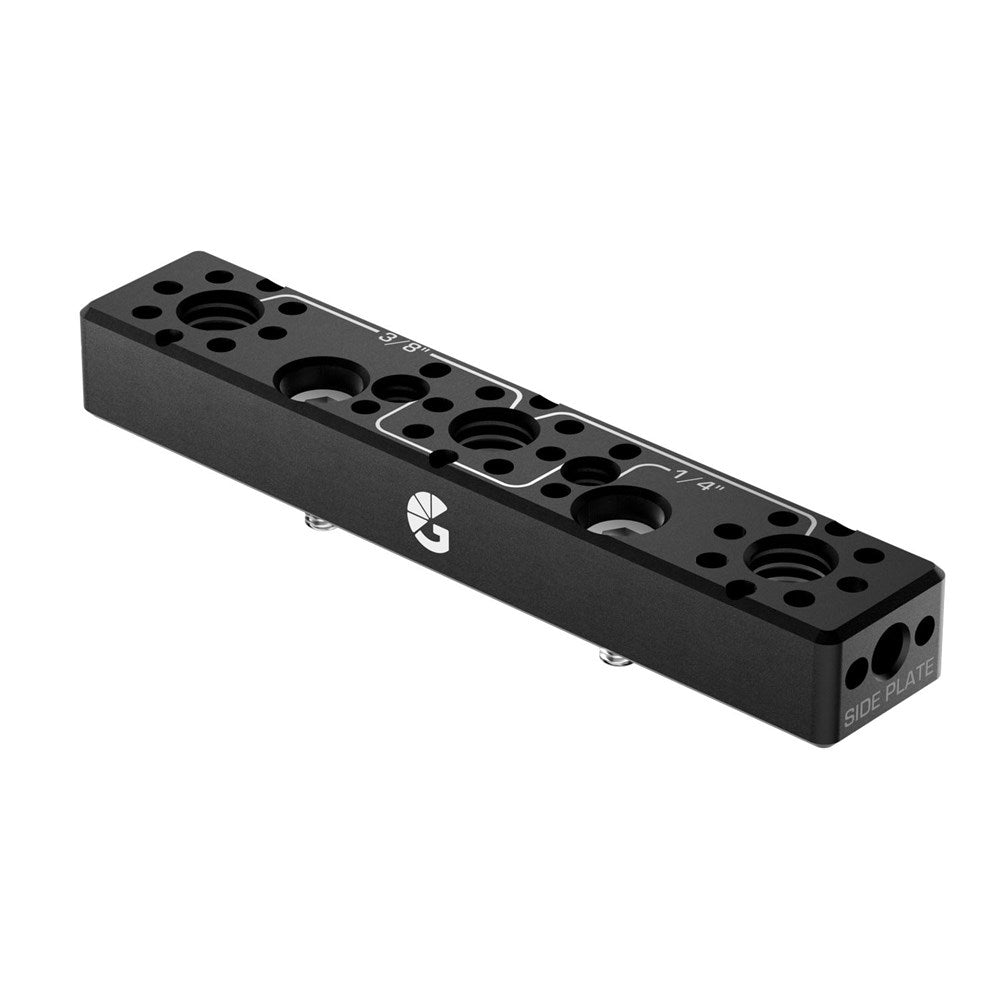

RED KOMODO-X Rear Top Plate
B4002.1092
B4002.1092
$65.00
Skip to product information
Description

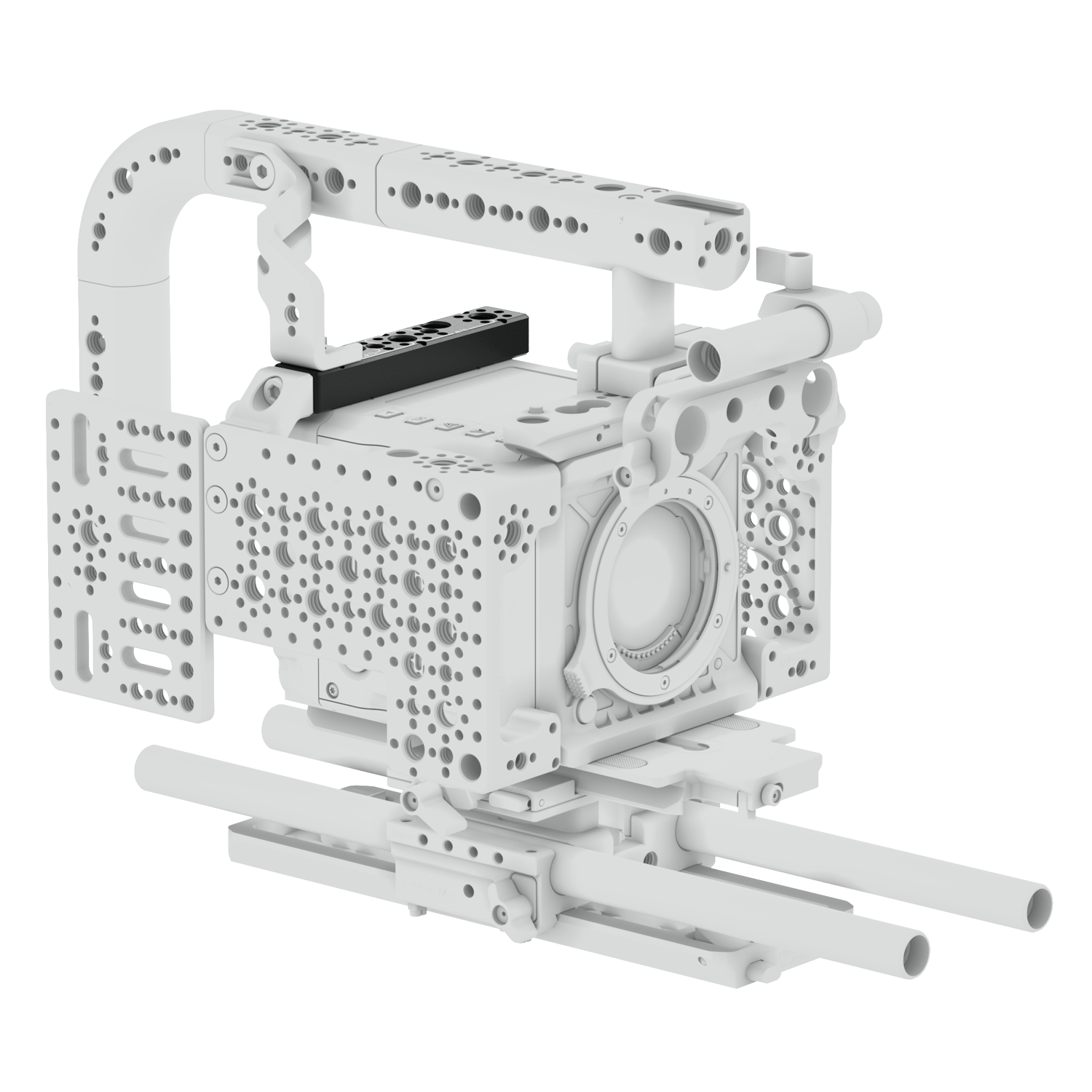

Give yourself extra rigging freedom with the RED KOMODO-X Rear Top Plate. Along with a selection of mounting points for accessories, the Rear Top Plate helps to brace both your Side Plate and Top Handle – for an overall rigid RED rig.
Made to our signature standard of quality, enhance your RED build today.
- Clean Rigging – Add to the rear of your RED rig with a selection of 1/4″ and 3/8” screw threads, each with anti-twist points.
- Support Anchor – The Rear Top Plate provides support for the Left Side Plate and Extended Handle Braces.
- Easy Installation – Install easily to your KOMODO with just a few turns of a 4mm Hex Key.
- Built to Last – The Rear Top Plate is made from high-grade aluminium, resistant to corrosion and wear.
The RED KOMODO-X Rear Top Plate comes with all required screws, but you will require your own 4mm Hex Key in order to install it. For adding the Handle Brace or Left Side Plate, you will require a 2.5mm and 4mm Hex Key.
1. Align the support Bracket with the top-left corner of the Right Side Plate, and use a 4mm Hex Key to screw it in place.
2. Align the Rear Top Plate to the Bracket and use a 2.5mm Hex Key to secure it in place.
Rear Top Plate to Side Plate
1. Align the support Bracket with the top-left corner of the Right Side Plate, and use a 4mm Hex Key to screw it in place.
2. Align the Rear Top Plate to the Bracket and use a 2.5mm Hex Key to secure it in place.
The RED KOMODO-X Rear Top Plate is designed to mount to the RED KOMODO-X, with dedicated mounting screws for that specific camera body.
Bright Tangerine offers accessories for film sets where every second counts. When you choose Bright Tangerine, you can be confident that every product is built to last: with each boasting enhanced durability and versatility.
| Weight | 0.045 kg |
|---|---|
| Dimensions | 10.1 x 1.9 x 1.7 cm |
| Camera brand | RED |
| Camera model | RED KOMODO-X |
| Plate type | Cheese Plate |
| Position | Top (Rear) |
