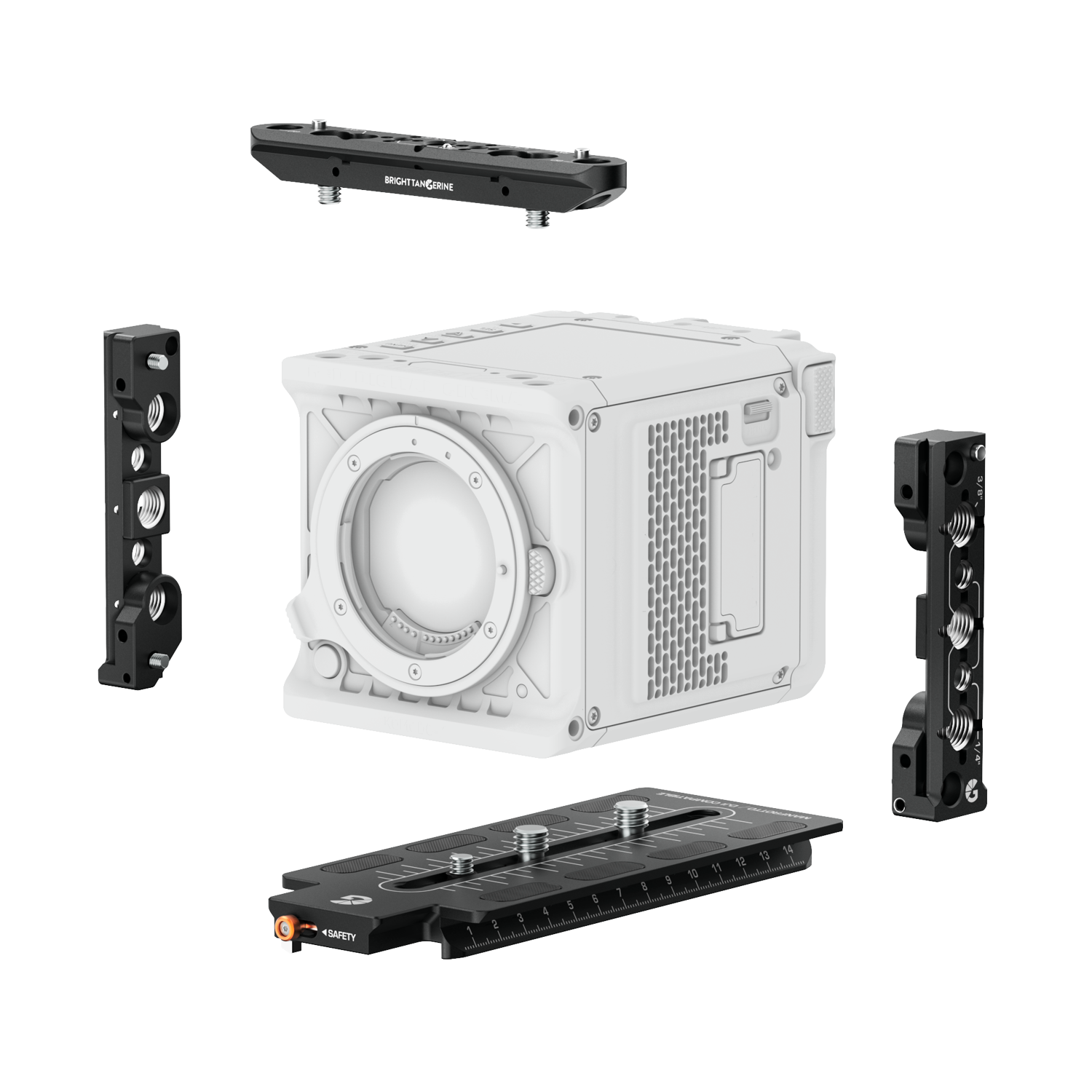

Everything you need to get started: the Essentials Kit for RED KOMODO-X is the ultimate starter kit. Featuring our Universal Dovetail for smooth transitions from gimbals to tripods, you can cut the downtime on any shoot. With a range of rigging options for everything from camera straps to wireless transmitters, your camera can be ready for anything.

Made to our signature quality standard, the Essentials Kit is the ultimate choice for RED rigging.

No Downtime

Our Universal Dovetail is a unique mounting system, perfect for minimalist rigs. It features dual compatibility with Manfrotto tripods and DJI gimbals – including an integrated DJI RS gear rack for balancing cameras – which gives you effortless switching between setups. When every second of cumbersome downtime counts, the Universal Dovetail cuts the last-minute scramble from your shoot schedule.

RED-dy for Anything

With the Side and Top Rails, you’ve got a selection of rigging options in a compact footprint. For classic bolt-on accessories, you’ve got 1/4" and 3/8” threads. For quick-release components, there are QD sockets and integrated NATO rails. To keep your gear safe, each thread has a helicoil-reinforced steel insert to prevent loosening, and the NATO rails feature safety stops at either end.

Adaptor-Friendly

When you step up from standard zooms to pristine primes, make sure you’ve got the right lens mount. Our Side and Top Rails feature dedicated mounts for Lens Adaptors and Supports: both for our own range of adaptor supports as well as first-party options from RED. Check the compatibility section for a breakdown of what works.

Only the Essentials

The Essentials Kit truly lives up to its name, with a deliberately minimal build. But don’t confuse “minimal” for “limited”: between the Universal Dovetail’s dual functionality and the assortment of rigging options on the Rails mean that you’ll never have to compromise.

Built to Last

Normally when a customer only buys something once, that’s a black mark against the business. Not with us: our Essentials Kit matches the high standard of quality set for all our goods: high-strength and low-weight for the ideal balance on your camera body.

Part of the RED KOMODO System

Enhance the possibilities of your RED KOMODO and KOMODO-X with our range of lightweight and durable accessories: offering new and improved customisation and protection options for any RED filmmaker.

The Essentials Kit for RED KOMODO-X comes with all required components and screws. You will require your own 3mm and 4mm Hex Keys, as well as a flathead screwdriver, to install it.

Universal Dovetail to Camera

1. Align the 3/8” and 1/4" screw threads of the camera with the screws on the Universal Dovetail – they can slide for optimal balance.

2. Use a flathead screwdriver to secure the dovetail to the camera.

Side Rails to Camera

1. Align the Right Side Rail with the right-hand side of the KOMODO camera body – making sure that the Bright Tangerine logo is the correct way up and facing outwards.

2. Use a 3mm Hex Key to screw the Side Rail into place.

3. Align the Left Side Rail with the left-hand side of the KOMODO camera body – making sure that the Bright Tangerine logo is the correct way up and facing outwards.

4. Use a 3mm Hex Key to screw the Side Rail into place.

Top NATO Rail to RED KOMODO (Non-RMI) or RED V-RAPTOR

1. Align the two outermost 1/4" screw threads with the sockets on the top of the KOMODO.

2. Use a 4mm Hex Key to insert and screw the two included 1/4" screws through both the rail and camera body.

Top NATO Rail to RED KOMODO (RMI)

1. Align the two innermost 1/4"screw threads (labelled “RMI”) with the 1/4" screw threads on top of the RED Monitor Interface.

2. Use a 4mm Hex Key to screw the NATO Rail to the RMI.

The Essentials Kit for RED KOMODO-X is designed for the RED KOMODO-X: compatible with all variations and lens mounts. The NATO Rails each feature mounting points for a range of first and third-party Lens Adaptors and Supports, including:

RED PL Adaptor Mounts

B4002.1019 - Vocas RF-PL Support for RED KOMODO

B4002.1020 - KipperTie Revolva/Adapta RF Support for RED KOMODO

B4002.1021 - RED KOMODO Metabones RF-PL Support

B4002.1026 - Canon 0.71x Expander Support for RED KOMODO

The Essentials Kit can be used with or without the DSMC RED Touch 7.0” and RED Monitor Interface (RMI). The Top NATO Rail features alternate mounting threads for use with the RMI.

Based in the UK, Bright Tangerine products have grown to a global audience thanks to their reputation for quality and longevity. Designed to be practical, anti-landfill solutions to filmmaking problems, each of our accessories undergoes a rigorous production process, to make your own productions easier. Our customer service team has a similarly unparalleled reputation for helping customers make the most out of every purchase.

Weight	0.264 kg
Dimensions	18 x 7 x 10 cm
Camera brand	RED
Camera model	RED KOMODO-X
Level	Essentials
Platform	Universal Dovetail
