Description

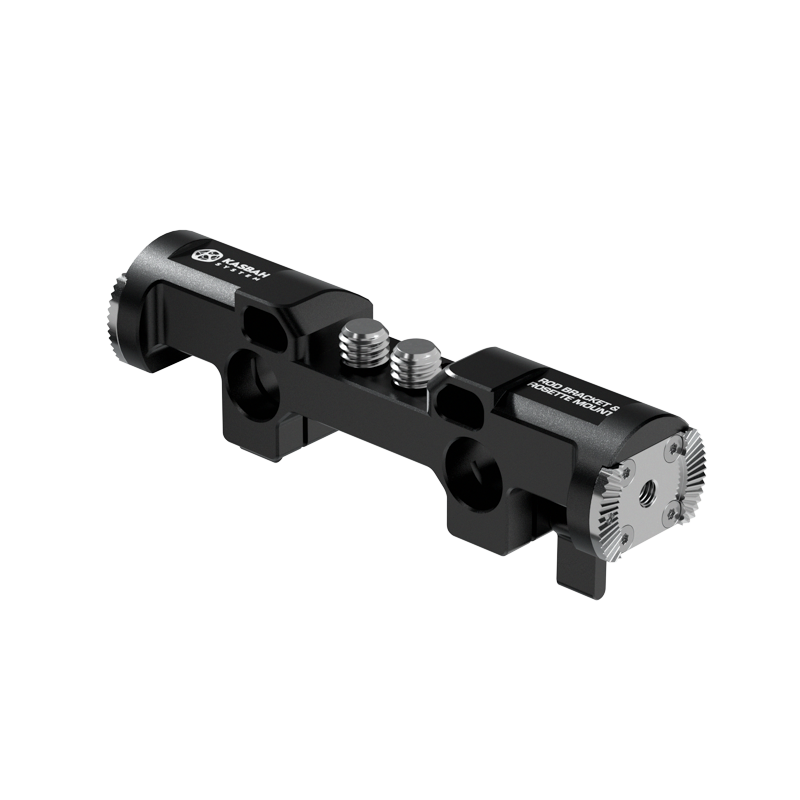

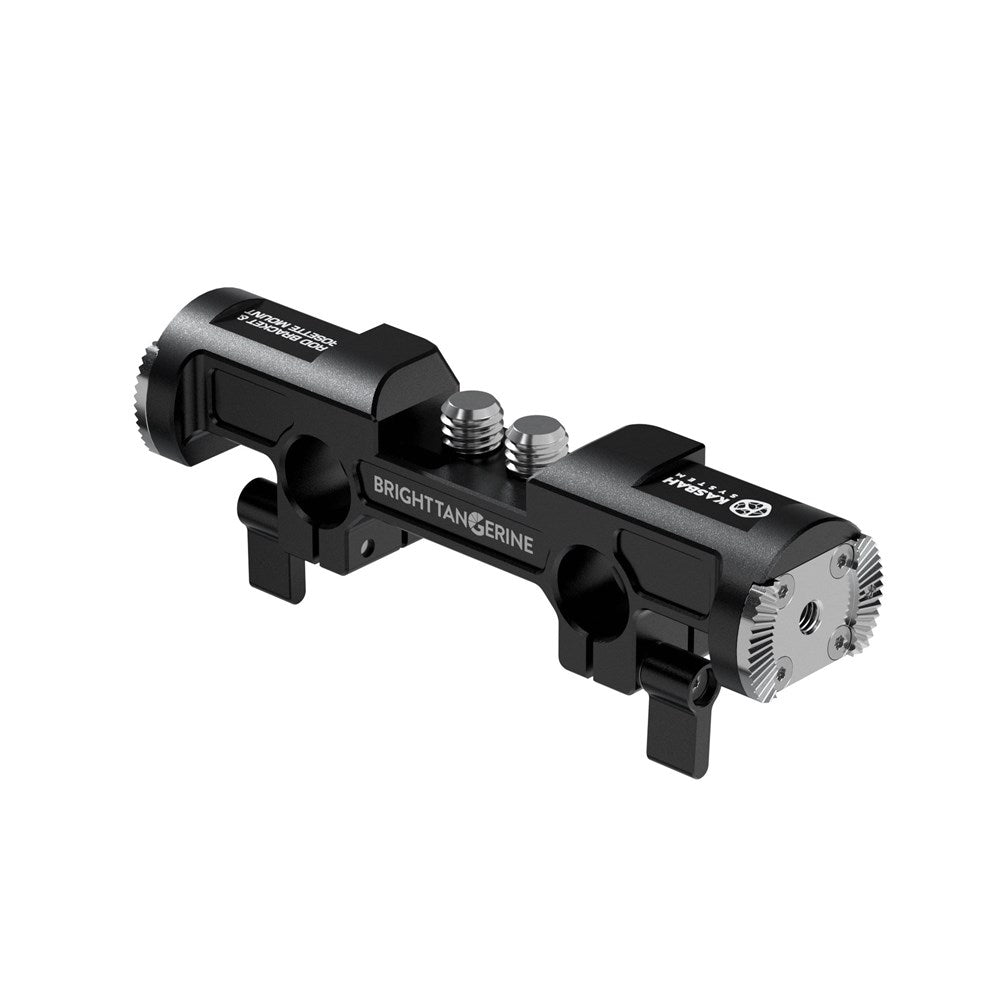

The 15mm Rod Bracket and Rosette Mount for Universal Dovetail expands the customisation options for your camera setup. The low-profile bracket adds two independently-locking 15mm rod brackets and dual ARRI rosettes, for extended compatibility with support rods, hand grips and more.
Mounting cleanly to the Universal Dovetail via two 3/8” screws, the Rod Bracket and Rosette Mount is an effortless addition to your rig.
- 15mm Rod Support – The Bracket adds two independently-locking 15mm rod mounts to the front of your rig.
- Rosette Rigging – Two ARRI rosettes on the side modify the Universal Dovetail for hand grips or other accessories.
- Standard Width – The 15mm rod brackets are set to the standard 15mm LWS standard width (not height).
- Clean Installation – The Bracket installs simply via two anti-twist 3/8” screws.
- Streamlined Rigging – The Bracket sits cleanly underneath the Universal Dovetail for low-profile setups.
The Rod Bracket and Rosette Mount for Universal Dovetail comes with the required screws. You will require a 4mm Hex Key in order to install it.
1. Align the two 3/8” screws on the top of the Rosette Mount with the threads on the base of the Universal Dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
The 15mm Rod Bracket and Rosette Mount is designed to mount to the Universal Dovetail, via two 3/8” screws. The rod bracket is operated without tools via two winged-lever clamps, with the brackets themselves set to the standard 60mm width for 15mm LWS setups. Please note, however, that the Bracket does not set the correct height and you will require additional risers or platforms.
Developed and tested in the UK, Bright Tangerine products are made to the highest standard; and support productions across the globe. Each product is built with sustainability as a core consideration, which in turn means that products are both long-lasting and high-quality. Our customer service team can assist you, with plenty of resources and support to help you make the most of our products.
| Weight | 0.16 kg |
|---|---|
| Dimensions | 3.2 x 13.5 x 2.6 cm |
| Camera brand | Universal |
| Camera model | Universal |
| Platform | Universal Dovetail |
| Sale | Black Friday |
| Universal dovetail brackets | 15mm Rod & Rosettes |
