Vocas RF-PL Support for RED KOMODO

B4002.1019
B4002.1019
$113.00
In Stock
Skip to product information
Vocas RF-PL Support for RED KOMODO
Vocas RF-PL Support for RED KOMODO

Description

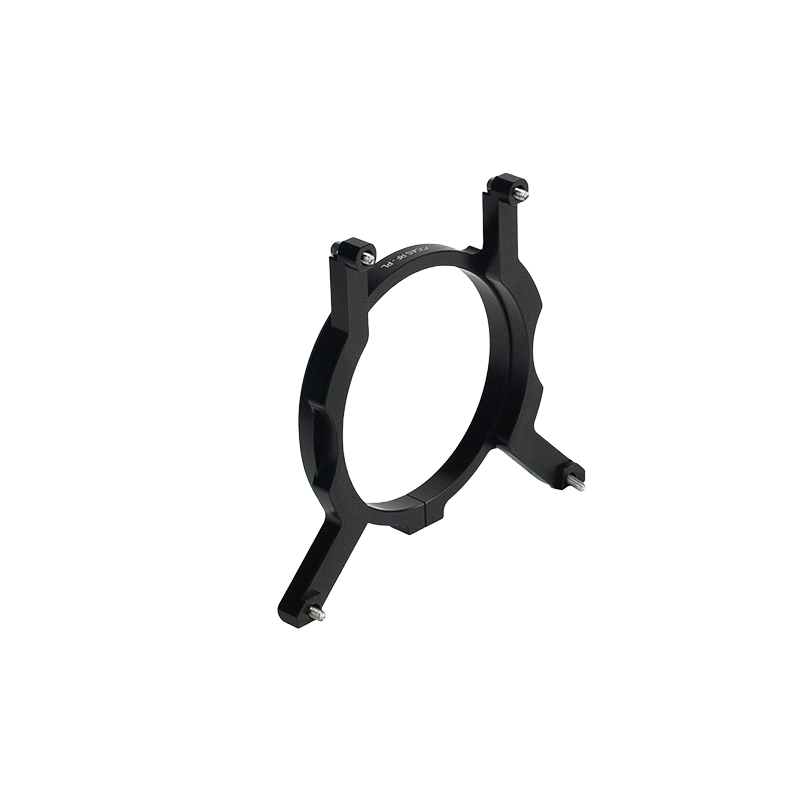

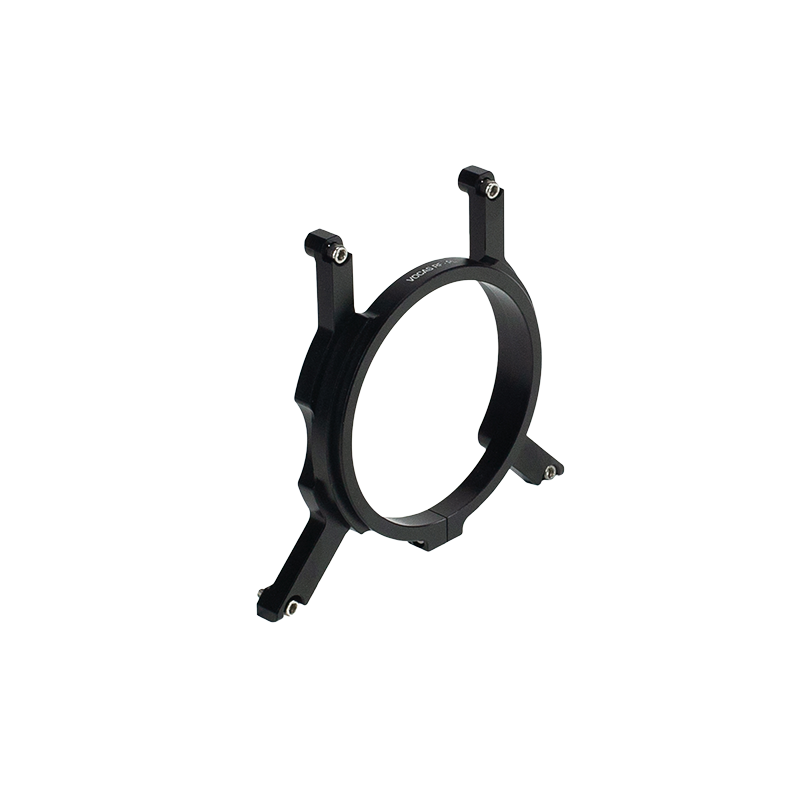

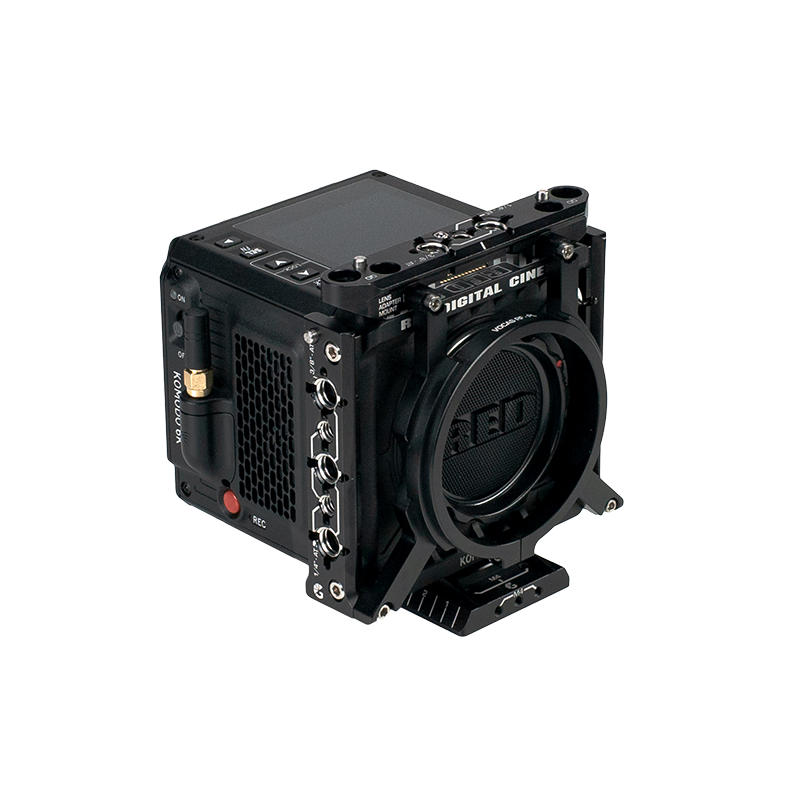

Secure your Vocas Canon R-mount to PL Adapter onto your RED KOMODO® , removing any flex or play in the mount. The support uses a 4-point harness and requires the LeftField side & top plates.

  • Contoured design to specifically fit the Vocas Canon R-mount to PL adapter
  • Completely locks off and removes any flex & wiggle from the camera to the adapter
  • Prevents micro-movements in all axis which can affect focus calibration
  • 4-point harness - mounts to LeftField side rails, top rail & the adapter
  • Simple to install and remove when swapping mounts & adapters
  • Interchangeable with other LeftField Adapter Supports for the RED KOMODO
    •

    This adaptor is custom made for the Vocas Canon R-mount to PL Adapter (0900-0018) when using with the RED KOMODO®. It provides a completely rigid mount. And it's interchangeable with any of the other LeftField Adapter Supports for the RED KOMODO.

    Rigid support in any situation.
    Securing your adapter is vital to eliminate movement which can cause issues with back focus, lens calibration and shim configuration.

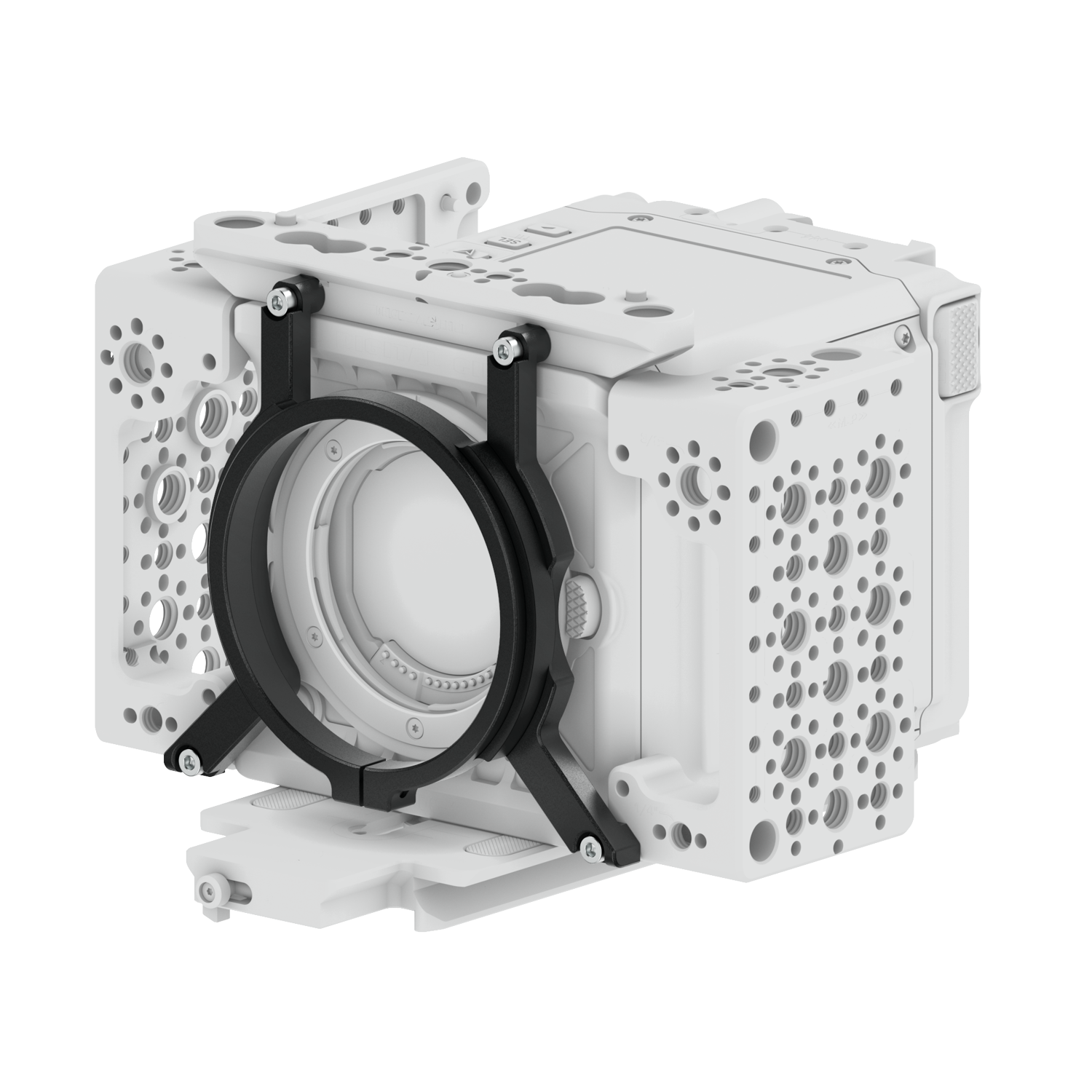

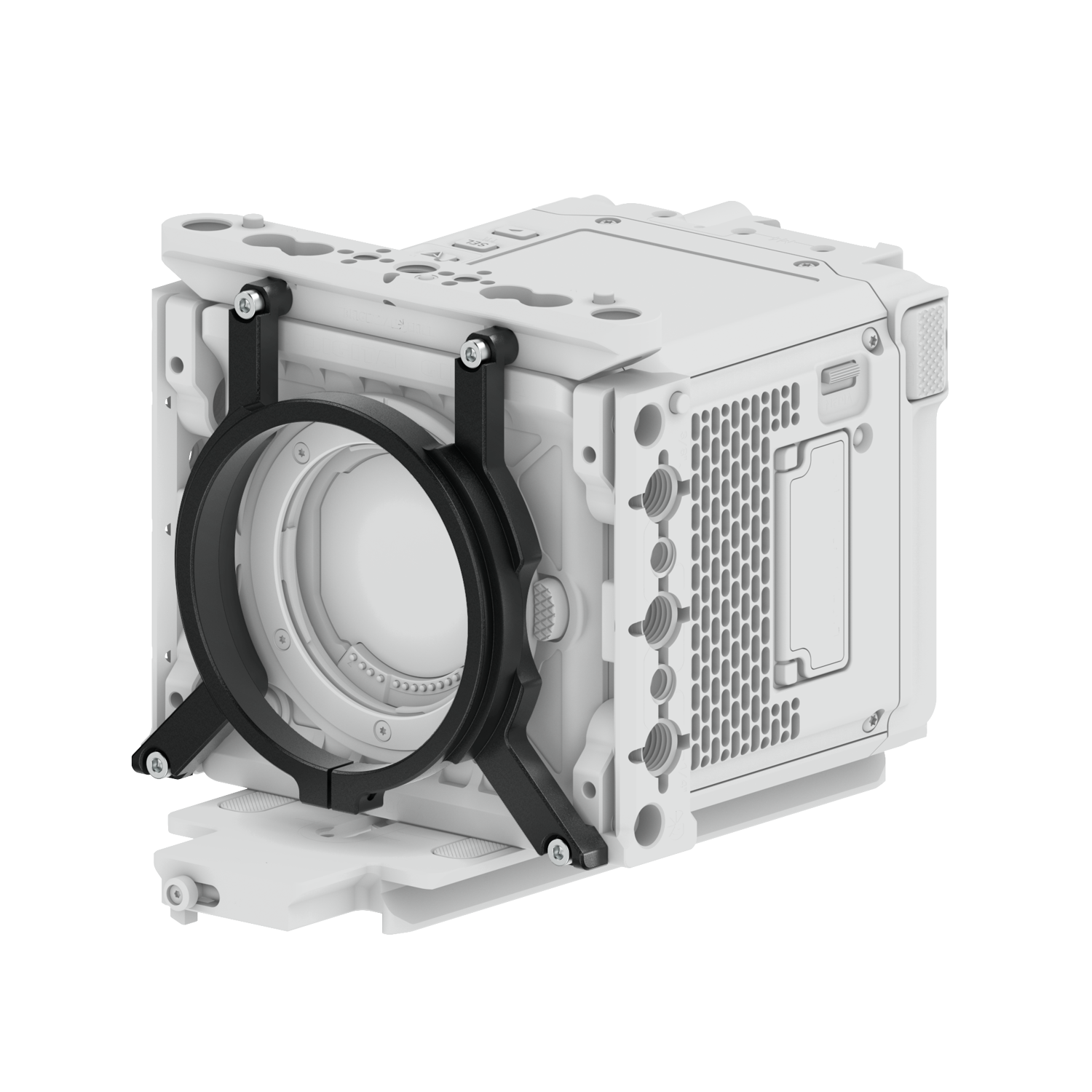

    The LeftField Adapter Supports create a 4-point harness by connecting to the adapter which is then secured to both the left, right and top rails anchored to the camera. This secures the adapter against forces in any axis of movement, whether the camera is moving at 100mph on a tracking vehicle, doing pans on a tripod or in a fast-paced handheld situation.

    What you'll need:
    You'll need the LeftField Side Plate Kit (B4002.0015) & Top Rail (B4002.1007) or Run/Stop Top Rail.

    Unlike other mount support systems, the LeftField Adapter supports don’t require the baseplate to be attached, so it can be used on minimal camera builds for handheld, aerial and gimbal work. When using larger lenses, we still recommend using a lens support, such as rods, to remove any flex from the lens to the mount.

    The support comes included with five M3x10mm screws for attachment. You will require a 2.5mm Hex Allen key.
    24 months
    Weight 0.102 kg
    Dimensions 11.5 x 10.2 x 1.8 cm
