Description

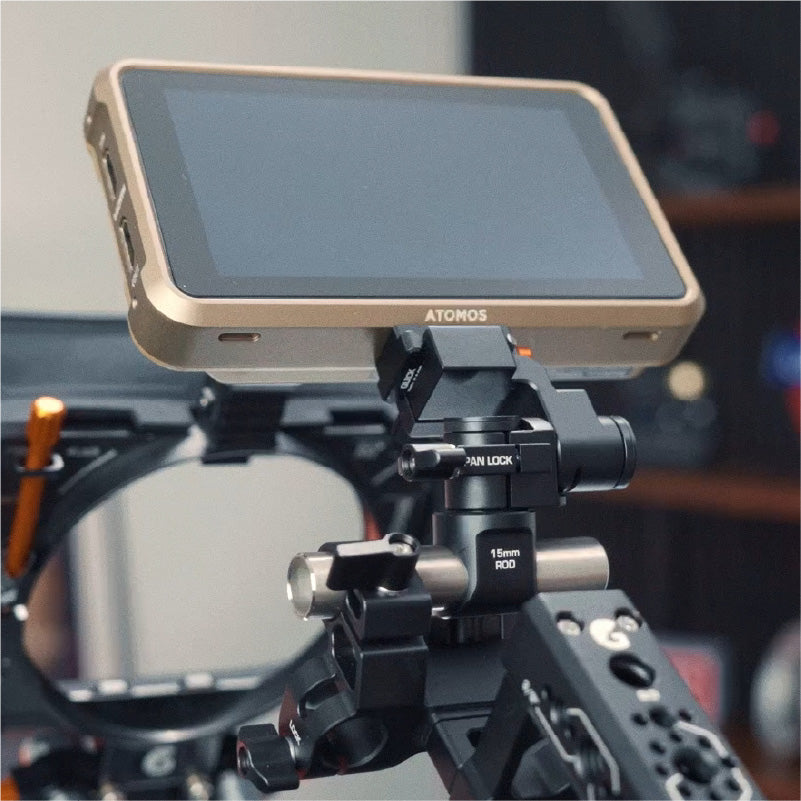

The only frequent breaks should be on your call sheet: the Universal Monitor Mount QR Kit from Bright Tangerine is the ultimate choice. With a NATO clamp on the top and a 15mm rod on the base, this system is perfect for varied rigging options for any monitor on any camera system.
- Universal – The Monitor Mount features locating pins for all monitor standards.
- Quick-Release – Remove and adjust your display thanks to the Mount’s NATO clamp.
- Reliable – The Monitor Mount can support up to 2.5kg of weight securely.
- No Slack – Pan and tilt with full freedom, but the monitor only moves when you want it to.
- Expandable – Pair with our Top Bar Bracket and Handles for an ergonomic setup.
What's Included:
Tired of monitor breakdowns? Instead of busting out the gaffer tape, try out our Universal Monitor Mount QR Kit –with a NATO clamp on top and mounting to a 15mm rod below. The pan-and-tilt mechanism secures the positioning, whilst the NATO clamp means you can quickly unlock and remove the monitor for adjustment – crucially, only moving the monitor when you want to.
Built for long-lasting performance, our Universal Monitor Mount lets you smash your shoot, not your setup.
Quick-Release Convenience
The Universal Monitor Mount features a NATO clamp on top: precisely sized to fit the included Quick-Release NATO Rail. This nifty NATO rail mounts to the bottom of any monitor, which then means you can slide them on-and-off any standard NATO accessory. If you want to tweak your colour balance or make an edit, you can slide the monitor clean off the camera, then slide it back on when you’re done.
Pan, Tilt & More
Whether you’re going low-angle on a handheld shot or doing an overhead view; standing operator-side on a shoot or sat behind the camera, the Monitor Mount can handle any point of view. The independent pan and tilt mechanisms give you free articulation: 180° tilting up-and-down, and a full 360° pan. The Monitor Mount keeps you level by providing tactile feedback clicks every 90° turn - ensuring you have the right angle every right-angle.
Easy Rigging
The base of the Universal Monitor Mount attaches to 15mm rods, giving you freedom to fit the Monitor wherever you like. Attach it to a handle via our Top Bar Bracket and 15mm Rod Mount, or give yourself a convenient offset from a compatible Top Plate with our MAP M4 15mm Rod Mounting Bracket. Simply tighten the winged-lever clamp and your monitor will be locked in place.
Clean & Compact
The Universal Monitor Mount QR Kit maintains a low profile on your rig, making it perfect for minimalist setups. If you are tired of squinting into your camera’s built-in EVF or screen, mounting a monitor has never been easier. The Monitor Mount can handle up to 2.5kg in weight – more than enough for even some of the heaviest monitors.
Accurate Anti-Twist
Ever had a monitor strip out, even when you were sure you'd secured in place? When we say "anti-twist", we mean it. Our pin system is robust and reliable, keeping the monitor aligned on the mount at all times.
Expandable, not Expendable
The QR Kit opens up a range of possibilities: creating a full handle and monitor setup that can cleanly transition from different camera systems. With the combination of any of our compatible Top Handles, a dedicated Top Bar Bracket and this Monitor Mount (plus one of our 15mm Drumstix rods); you can build a clean and low-profile combo that is perfect for a range of rigs.
Part of the Monitor Mount System
Filmmaking is an expensive trade, and a cracked monitor is a mistake you can’t afford to make even once. Our Universal Monitor Mounts are durable and dependable, for long-lasting success. Made from aerospace-grade aluminium, each Monitor Mount is designed to withstand the worst that your shoots can throw at it.
The Universal Monitor Mount comes with all required components. You will require your own flathead screwdriver to install it.
1. Slide the Mount’s rod clamp onto a compatible 15mm rod.
2. When positioned, tighten the winged-lever clamp until the Mount is securely fastened.
1. Use a flathead screwdriver to install the Quick-Release NATO Rail to the base of the monitor – ensuring that the locating pins are in the correct configuration.
2. Slot the NATO Rail into the NATO clamp on the top of the monitor mount.
Mount to 15mm Rod
1. Slide the Mount’s rod clamp onto a compatible 15mm rod.
2. When positioned, tighten the winged-lever clamp until the Mount is securely fastened.
Monitor to Mount
1. Use a flathead screwdriver to install the Quick-Release NATO Rail to the base of the monitor – ensuring that the locating pins are in the correct configuration.
2. Slot the NATO Rail into the NATO clamp on the top of the monitor mount.
The Universal Monitor Mount QR Kit (NATO Top, 15mm Rod Base) is compatible with any camera setup, and any monitor – especially compact field monitors between 5” and 7”. It requires the Quick-Release NATO Rail in order to correctly mount monitors.
Based in the UK, Bright Tangerine products have grown to a global audience thanks to their reputation for quality and longevity. Designed to be practical, anti-landfill solutions to filmmaking problems, each of our accessories undergoes a rigorous production process, to make your own productions easier. Our customer service team has a similarly unparalleled reputation for helping customers make the most out of every purchase.
| Weight | 0.114 kg |
|---|---|
| Dimensions | 6.5 x 4.5 x 8 cm |
| Camera brand | Universal |
| Camera model | Universal |
| Monitor mount type | NATO Clamp |
| Mount | 15mm Rod |
| Sale | Black Friday |
