As David Bowie once sang: “don’t you wonder sometimes 'bout sound and vision?” Our Sony XLR Handle bracket means you don’t have to wonder anymore: mount your FX3 or FX5 audio handle anywhere you need, and even alongside the latter’s EVF. All it takes is a little elbow grease to have a fully functioning dual-purpose rig, with full 32-bit audio.

With a dizzying range of ways to rig, the Sony XLR Handle Bracket is your new best friend.

Cable Consistency

If you want to make the most of your XLR handle then the Godox GAC-IC13 cable is what you need: preserving that full 32-bit audio quality for your films. The only catch is that the Godox cable comes with a cold shoe mount you’ll need to remove – but thankfully, we’ve got the perfect cable cover to replace it, all packaged up.

Easy Rigging

For a little bit more freedom for rigging, the XLR Handle Bracket features a selection of M4 x 10mm mounting threads, which in turn let you attach rod brackets anywhere on your build. These are especially useful for adding third-party monitors or lens motors to an elevated position, without getting in the way of the handle itself.

Double Up

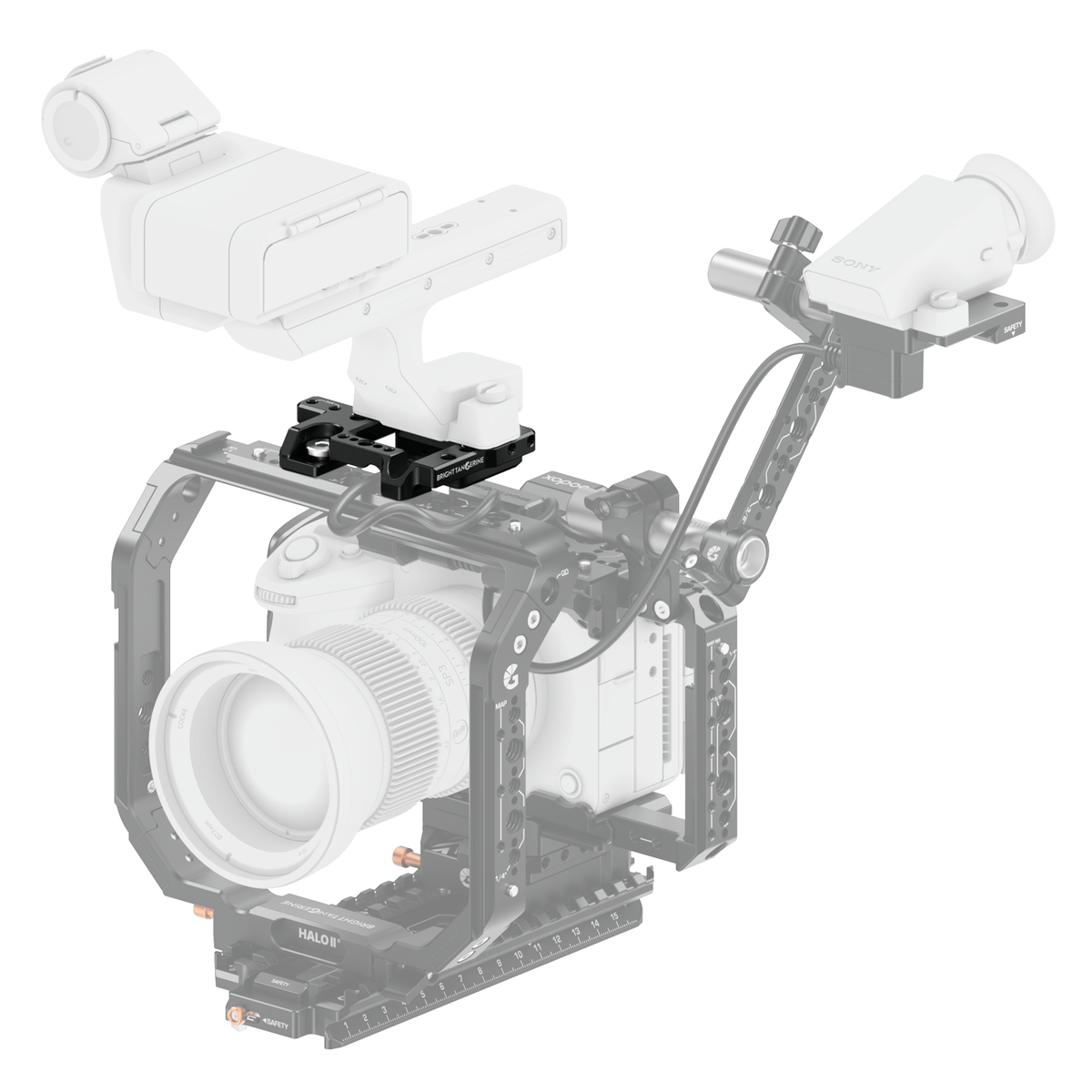

Can’t decide between the FX5 EVF and the Handle? Why not use both? Our XLR Handle Bracket pairs with our FX5 EVF Bracket, then all you need to do is plug in each cable to the multifunction shoe and EVF slot. From there, you can customise your setup however you need: put the EVF out on a NATO rail, or mount it next to the XLR handle for a more compact build – whatever the call sheet calls for.

Part of the Sony System

Enhance your Sony setup with our range of dedicated camera accessories for Sony cameras. From the best camera cages on the market to streamlined setups, you’ll always have the right tool for the job with us.

The Sony XLR Handle Bracket comes as a collection of components: the bracket itself, a cable cover, and a flathead screwdriver. You will require the Godox GAC-IC13 cable and your own 4mm Hex Key to install it.

Replacing the Cable Cover
1. Use the flathead screwdriver to remove the camera-end cold shoe mount from the Godox cable.
2. Place the Bright Tangerine cable cover in the slot and use the flathead
screwdriver to reinsert the screws.

Handle to Bracket
1. Align the screws of the XLR handle with the threads on the bracket – they can be mounted front or rear-facing.
2. Align the 1/4" and 3/8” screws of the bracket with corresponding threads on your cage or plate of choice.

The Sony XLR Handle Bracket is compatible with the Sony XLR-H1 and XLR-H2 audio handles for the Sony FX3 and FX5 respectively. It can be mounted to a range of cages or top plates via the captive 1/4" and 3/8” screws.

You will require a Godox GAC-IC13 cable in order to reposition the XLR handle. The Bracket comes with a separate cover for the base of the handle that you will need to replace manually.

Based in the UK, Bright Tangerine products have grown to a global audience thanks to their reputation for quality and longevity. Designed to be practical, anti-landfill solutions to filmmaking problems, each of our accessories undergoes a rigorous production process, to make your own productions easier. Our customer service team has a similarly unparalleled reputation for helping customers make the most out of every purchase.

24 months

Weight	0.046 kg
Dimensions	5.8 x 8.1 x 1.4 cm
