For unmatched quality both inside and outside the image sensor, our Expert Broadcast Kit for the Sony VENICE is the only place to look. Swap from VCT-14 tripods to shoulder-mounted shooting at the drop of a hat, so that you’re always ready for the ever-changing world of broadcast.

Featuring a rigid cage and robust shoulder rig, the Expert Broadcast Kit is the perfect foundation for your rig.

Balanced Baseplate

The Expert Broadcast Kit is based on the ARRI BUD ecosystem: which is the favourite of cinematic shooters around the world. Our Universal BUD Plate serves as a low-profile base mount: giving you the freedom to mount quickly to any Balanced Utility Dovetail in moments.

Clean Customisation

Our redesigned cage for the VENICE maximises rigging options whilst minimising its footprint. The new Side Plates design feature integrated NATO rails and ARRI rosettes; as well as the standard suite of 1/4" and 3/8” screw threads. Each accessory mount comes with built-in safety features, such as an easy-press catch or locating pin threads, to ensure all accessories are kept safe.

Ready for Anything

When shooting on-the-go, no two minutes are the same. If you need to follow a moving subject or are setting up for a quick static shot, the Expert Broadcast Kit’s integrated KASBAH Ātman Shoulder Rig cuts out the downtime. With a built-in VCT-14 tripod mount, you can get set up in seconds.

Constant Comfort

For those more run-and-gun moments, the Shoulder Rig keeps you comfortable no matter how long the take. The two-axis pad can slide forwards-backwards as well as left-to-right, and is made from a 3D-printed resin that contours to the shape of your muscles. Trust us: it may look metallic, but it’s ultra-comfortable.

Easily Handled

For carrying your VENICE between setups, our D-Style Master Handle gives you a convenient carry point. The rubber inlay in the grip keeps your hand comfortable even on long hauls between setups, and the handle features its own array of accessory mounting options and optional Handle Extensions – so you can create your own unique handle shape.

A New View

Without a convenient viewfinder, even the most talented cinematographer is like a sniper without a scope. Change how you see the world with our Axl EVF Mount. Using a 3-axis adjustment system, you can smoothly adjust the position of your viewfinder – even one-handed. The unique mechanism ensures your EVF is always kept steady, and you can adjust the positioning without the fear of the Axl dropping or sagging.

Part of the Sony VENICE System

Expand the possibilities of your Sony setup: our range of accessories for both the Sony VENICE and VENICE 2 allow you to create versatile rigs for any shooting scenario. From cinematic narratives to run-and-gun content creation, cut the complicated from your next shoot.

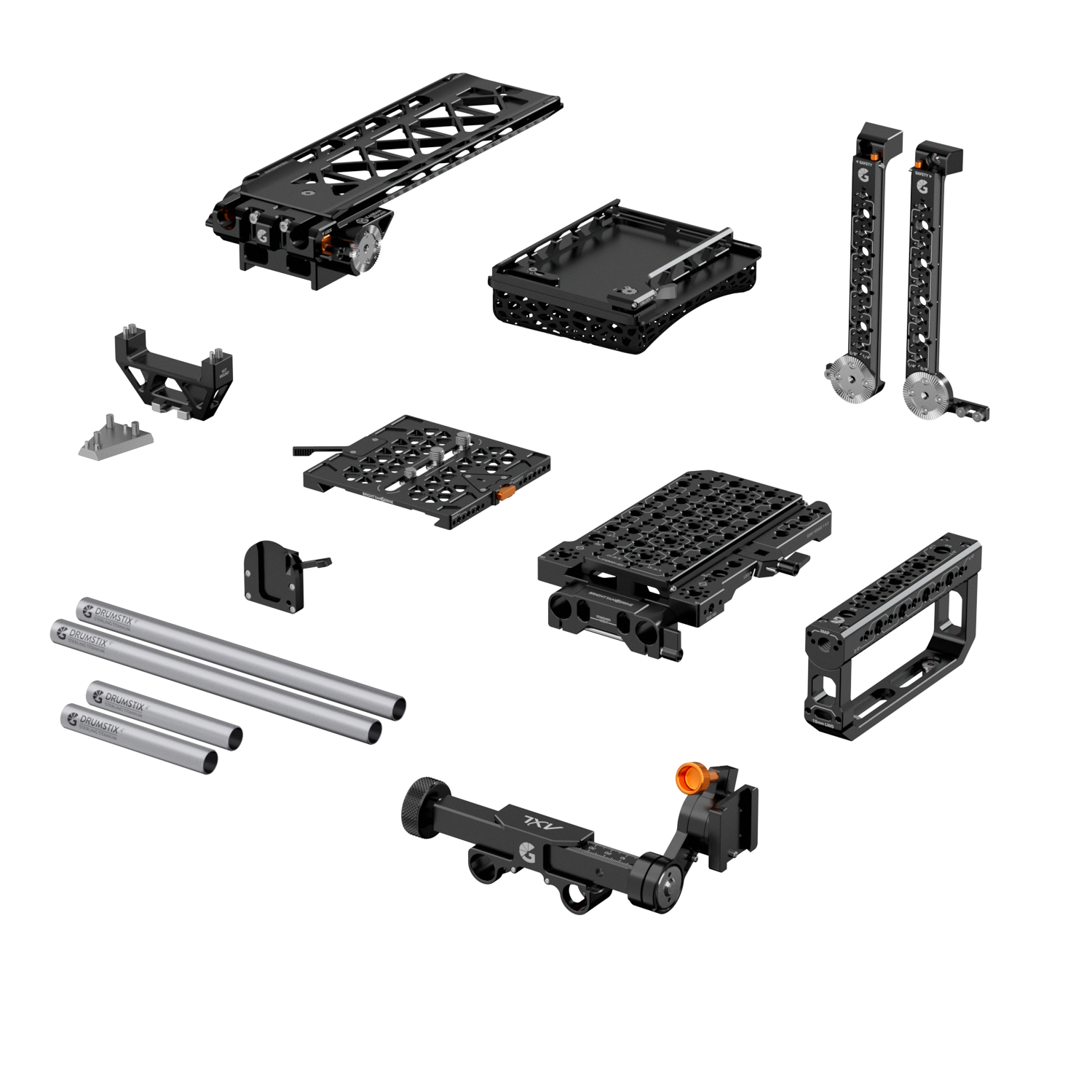

The Sony VENICE 1 & 2 Expert Broadcast Kit Mk II comes with all required components and screws. You will require your own flathead screwdriver as well as a 3mm and 4mm Hex Key in order to install it.

BUD Plate to Camera

1. Align the screws of the Universal BUD Plate with the 1/4″ and 3/8” screw threads on the base of the VENICE. The locking lever should be facing the camera-right (aka AC) side on the camera.

2. Use a flathead screwdriver to attach the BUD plate to the camera.

Top Plate Core to Camera

1. Align the four 1/4″ mounting points on the Top Plate with the threads on the VENICE body – the locking lever should be on the camera-left side.

2. Use a 4mm Hex Key to secure the core to the camera.

Dovetail to Top Plate

1. Slide the Dovetail plate in from the rear of the camera.

2. When positioned, tighten the clamp to secure the dovetail in position.

Front Rod Console to Top Plate

1. Align the Rod Console up or down on the front screws.

2. Use a 4mm Hex Key to attach the Front Rod console to the corresponding threads on the Top Plate.

Right Side Plate to Cage

1. Align the Right Side Plate with the screw threads on the right side of the Top Plate and BUD Plate – the ARRI rosette should be towards the bottom, and the Side Plate should sit towards the front of both plates.

2. Use a 3mm Hex Key to screw the two M4 screws on the base into the BUD Plate, and a 4mm Hex Key to screw the one 1/4" screw into the Top Plate.

Left Side Plate to Cage

1. Align the Left Side Plate with the screw threads on the left side of the Top Plate and BUD Plate – the ARRI rosette should be towards the bottom, and the Side Plate should sit towards the front of both plates.

2. Use a 3mm Hex Key to screw the two M4 screws on the base into the BUD Plate, and a 4mm Hex Key to screw the one 1/4″ screw into the Top Plate.

Top Handle to Top Plate

1. Align the two captive 3/8” screws with the central line of captive screw threads on the Sliding Top Plate.

2. Use a 4mm Hex Key to attach the handle to the plate.

Adaptor to Axl

1. Lower the quick-release rail into the Axl EVF Mount’s clamp.

2. Use the orange screw to tighten the clamp and secure your EVF in place.

Axl to Rods

1. Insert the Axl EVF Mount onto the 15mm rods.

2. Use the single locking mechanism to secure the EVF in place.

EVF to Adaptor

1. Remove the Sony VENICE EVF from the stock mount.

2. Slide the Axl EVF Adaptor onto the Sony viewfinder.

Universal BUD Plate to KASBAH Ātman

1. Slide the camera into place and lock the dovetail clamp in place.

The Sony VENICE 1 & 2 Expert Broadcast Kit is designed to fit the Sony VENICE 1 and Sony VENICE 2 series of cameras: with the shape and size of the cage mounting to dedicated screw threads. Aside from the Top Plate, Side Plates and EVF Adaptor; the rest of the components are universal and can be reused with other setups.

Bright Tangerine offers accessories for film sets where every second counts. When you choose Bright Tangerine, you can be confident that every product is built to last: with each component boasting enhanced durability and unmatched versatility.

Weight	2.607 kg
Dimensions	30 x 20 x 20 cm
Camera brand	Sony
Camera model	Sony VENICE 2
Kit type	Shoulder Rig
Level	Expert
Platform	Universal BUD
