NATO Cheese Stick
B4013.1004
B4013.1004
$29.00
Skip to product information
Description

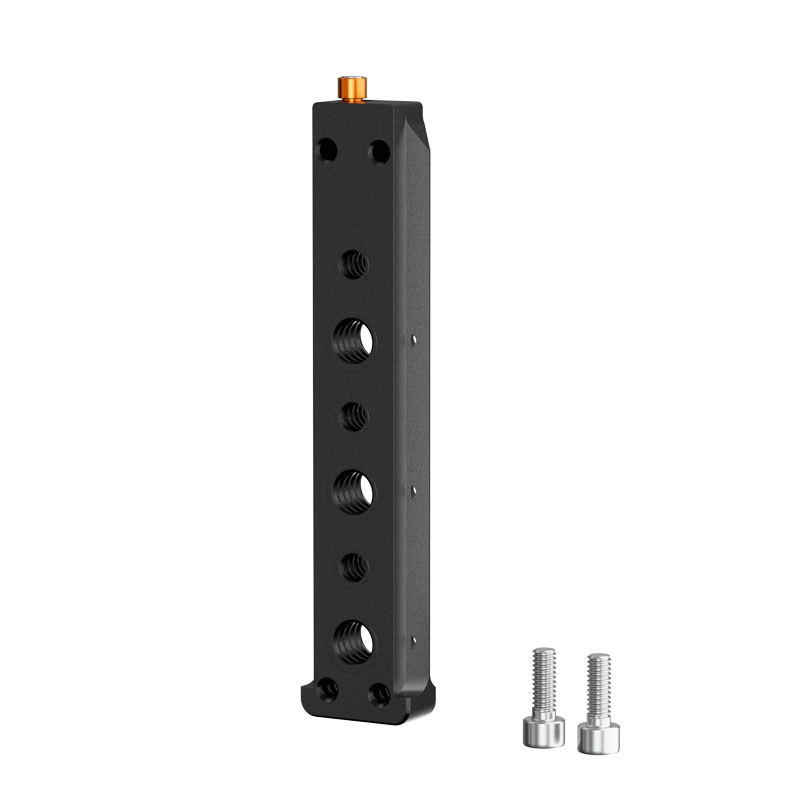

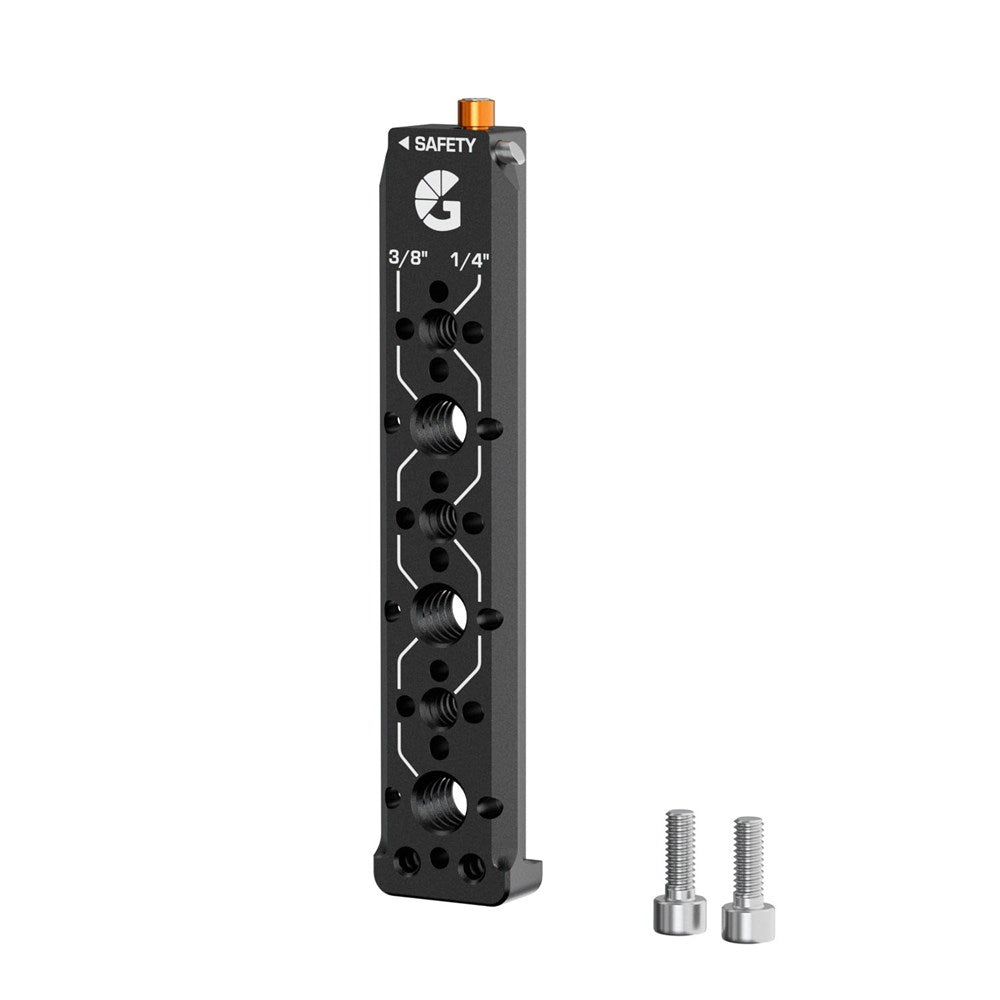

The NATO Cheese Stick adds a convenient NATO rail to your camera rig. The plate can be paired with our B4013.1001 – 1/4”-20 Cheese Plate Adaptor to mount onto any ¼”-20 accessory point.
Capable of being mounted from the top or bottom, this NATO Cheese Stick is a lightweight yet useful tool for small camera setups.
- Quick Release – The cheese stick is compatible with any NATO standard clamp and offers 85mm of travel.
- Streamline– Small accessories can be hard mounted to the stick via the threaded ¼” & 3/8” holes.
- Easy Installation – The cheese stick combines with a Cheese Plate Adaptor for a convenient mounting option.
- Secure – The bottom features a hard stop and an easy-press safety which ensures no accidental releases.
- Versatile – The cheese stick can be mounted from the top or bottom.
The cheese stick serves as a standalone unit, requiring no assembly on its own. In order to install it onto an adaptor or plate, use a 3mm Hex Key on the provides screws to attach the cheese stick to a corresponding M4 mount on the top or bottom of the stick. When securely fastened, you are then free to install any accessories via NATO rail or the array of 1/4” and 3/8” inserts.
1. Align your cheese stick with the corresponding M4 points on the Cheese Plate Adaptor.
2. Use a 3mm Hex Key to tighten the two M4 screws provided with the cheese stick, securing it to the adaptor.
1. Test fit the placement of the adaptor and cheese plate on your rig.
2. Use the two included M4 screws to secure the cheese stick to the adaptor with a 3mm hex key, ensuring it is tight and secure.
3. Attach the assembled cheese plate to your camera rig.
1. To attach a NATO accessory, loosen the clamp and slide the accessory onto the rail from the top.
2. To release the NATO accessory, loosen the clamp, press the orange button, and slide the accessory off the rail.
Cheese Stick to Adaptor
1. Align your cheese stick with the corresponding M4 points on the Cheese Plate Adaptor.
2. Use a 3mm Hex Key to tighten the two M4 screws provided with the cheese stick, securing it to the adaptor.
Adaptor to Camera
1. Test fit the placement of the adaptor and cheese plate on your rig.
2. Use the two included M4 screws to secure the cheese stick to the adaptor with a 3mm hex key, ensuring it is tight and secure.
3. Attach the assembled cheese plate to your camera rig.
NATO Rail to Cheese Stick
1. To attach a NATO accessory, loosen the clamp and slide the accessory onto the rail from the top.
2. To release the NATO accessory, loosen the clamp, press the orange button, and slide the accessory off the rail.
| Weight | 0.046 kg |
|---|---|
| Dimensions | 10.4 x 2.1 x 1 cm |
| Camera brand | Universal |
| Camera model | Universal |
| Sale | Black Friday |
| Size | Cheese Stick |
