Whether you’re going handheld for a dramatic close-up, shooting an ambitious oner on a gimbal, or anything in between; our Advanced Cine Kit for the Fujifilm GFX ETERNA makes even the most complicated shot list a breeze. Using both our LeftField Mini Baseplate and Universal Dovetail, you can effortlessly switch setups from tripods, gimbals, and any ARRI dovetail.

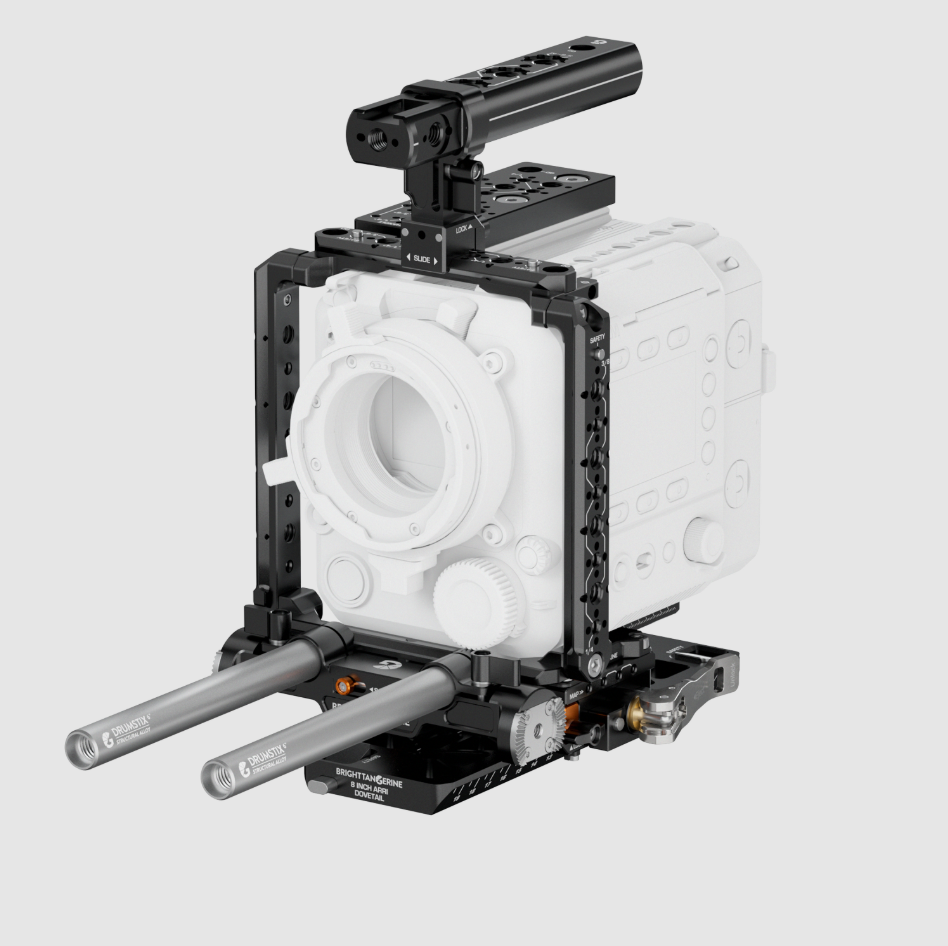

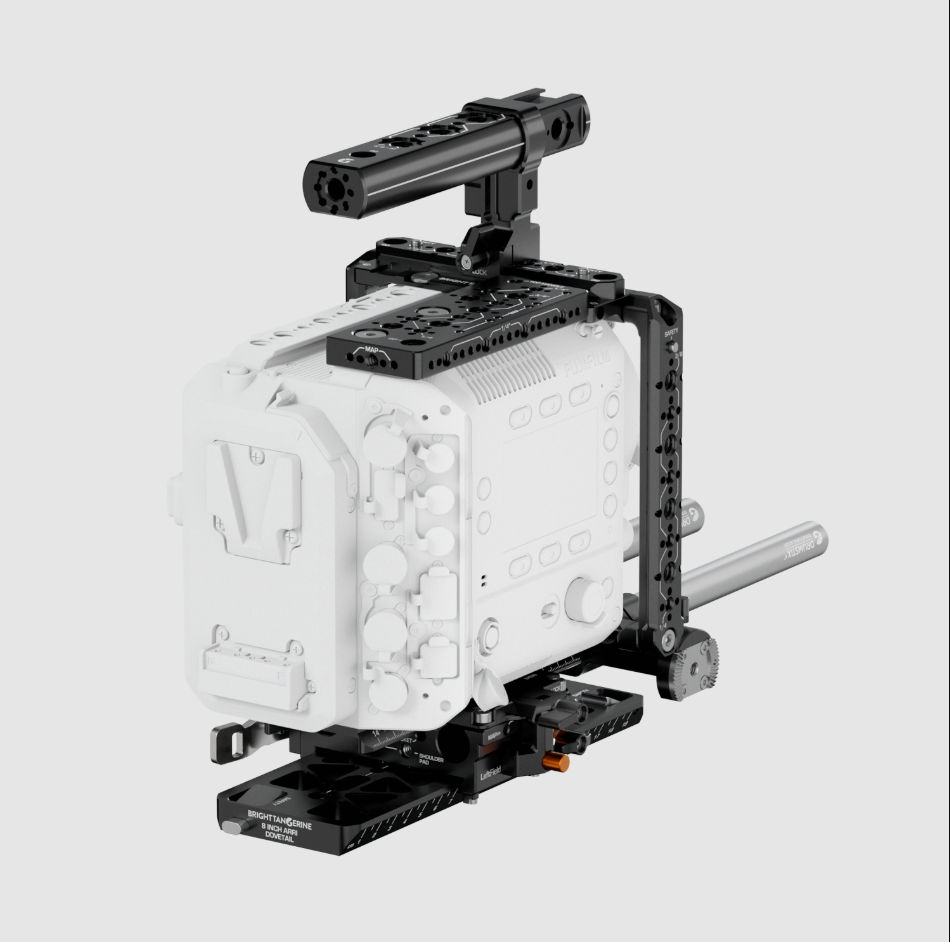

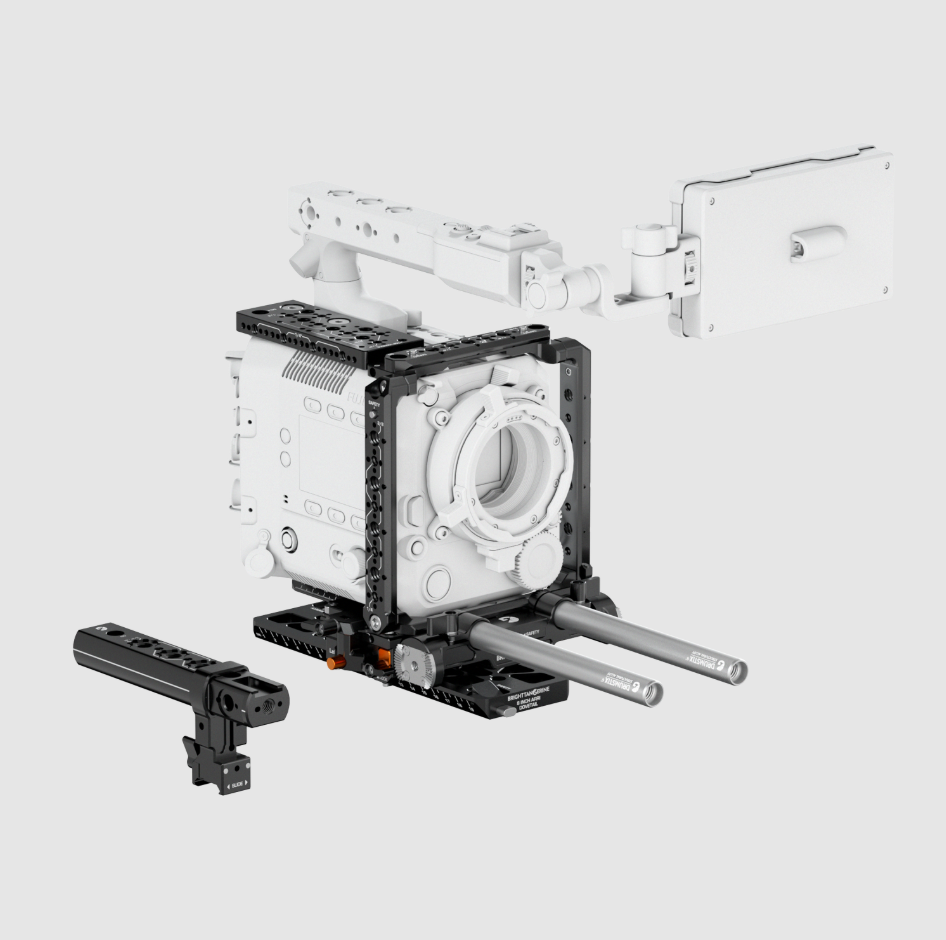

Forming a rigid cage around the ETERNA, the Advanced Cine Kit is the perfect platform for filmmakers of any skill level.

Lift-Off

With our LeftField Mini Baseplate, you can enjoy quick-release access to your camera setup at any point. Our patented Open•UP mechanism allows you to slide or lift the entire baseplate from compatible ARRI standard dovetails – including the 8” dovetail featured in this kit. Once locked in place, your camera will be safely secured for as long as you need it to be.

Dovetail Design

For a more low-profile rig without compromising on function, simply use our Universal Dovetail. Securing to the top of the LeftField Mini, this ergonomic dovetail allows you to quickly swap between Manfrotto tripods and DJI gimbals: ideal for decreasing downtime between setups. The included Rod and Rosette Bracket allows you to mount our support rods at the 15mm LWS standard height for the ETERNA, opening up compatibility with matte boxes, lens supports, and more.

Complete Your Cage

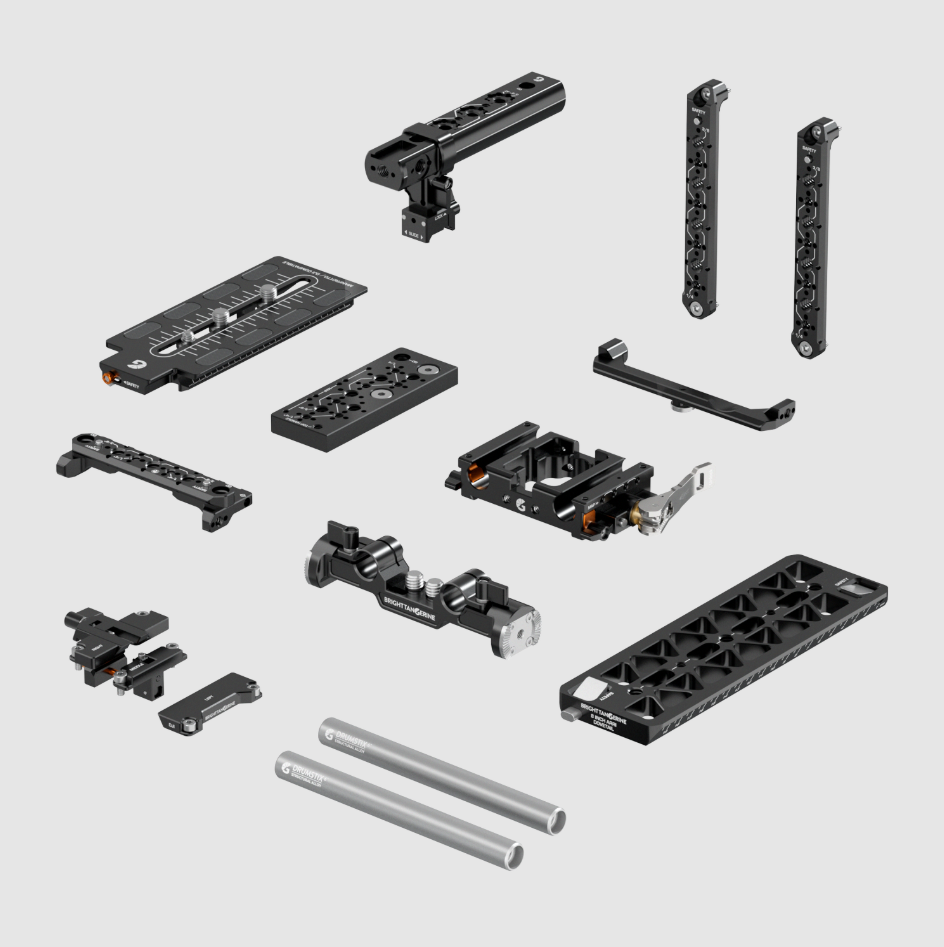

If you’re looking to deck out your camera with essential components and accessories, the Advanced Cine Kit provides a range of real estate. Our purpose-built Top Plates and Side Ribs offer a range of accessory mounts: ranging from standard 1/4" and 3/8” screw threads (each with locating pin slots); as well as integrated NATO rails, MAP M4 points and QD sockets. The Side Rib Brace completes the cage: forming a rigid rig around your ETERNA.

Get a Grip

The Advanced Cine Kit also offers multiple options for handheld shooting, or even just transporting between setups. The included NATO Top Handle is an adjustable and comfortable handle that can mount easily to the front of the ETERNA. For different builds, the handle can be fitted with our range of Master Handle Extensions. Alternatively, fit side handles or hand grips like those in our KASBAH range via the Universal Dovetail’s dual ARRI rosettes.

Built to Last, Made to Use

If you’re looking for a robust and reliable ecosystem for your Fujifilm setup, the Advanced Cine Kit is exactly what you need. Made from hard-anodised, aerospace-grade aluminium; each component is built for maximum quality and longevity.

Part of the Fujifilm System

Bright Tangerine’s range of accessories for the Fujifilm GFX ETERNA are precision-engineered to maximise freedom and minimise downtime. Wear and corrosion-resistant; each accessory is made by a combination of expert designers, engineers and – of course – filmmakers.

The Fujifilm GFX ETERNA Advanced Cine Kit comes with all required components and screws. You will require your own 3mm and 4mm Hex Key, as well as a flathead screwdriver, to install them.
Top Plate (Front) to Camera
1. Align the Top Plate’s captive screws with the two 3/8” screw threads on the ETERNA.
2. Use a 4mm Hex Key to secure the Top Plate to the camera.
Top Plate (Right) to Camera
1. Align the Top Plate’s 3/8” screws with the bottom two 3/8” screw threads on the ETERNA’s right side.
2. Use a 4mm Hex Key to secure the Top Plate to the camera.
Top Handle to Top Plate
1. Loosen the Top Handle’s winged-lever clamp and slide it onto the NATO rail on the front of the Top Plate.
2. When positioned, tighten the Top Handle’s clamp.
Universal Dovetail to Camera
1. Align the captive 1/4" and 3/8” screws with threads on the base of the ETERNA. The screws can slide along the length of the dovetail to help balance larger lenses.
2. Use a flathead screwdriver to attach the Dovetail to the camera.
Side Rib Brace to Universal Dovetail
1. Use a flathead screwdriver to remove the screw from the Side Rib Brace.
2. Place the Side Rib Brace on top of the Universal Dovetail and insert the screw through the bottom.
3. Use the flathead screwdriver to reattach the screw through the Dovetail to the Side Rib Brace.
Rod and Rosette Bracket to Dovetail
1. Align the two 3/8” screws on the top of the Bracket with the threads on the base of the Universal Dovetail.
2. Use a 4mm Hex Key to tighten both screws into place.
Side Rib to Top Plate
1. Align the Side Rib with the left or right lip on the Top Plate.
2. Use a 4mm Hex Key to tighten the screw into place.
3. Repeat on the other side with the other Side Rib
Side Rib to Side Rib Brace
1. Align the screw at the base of the Side Rib with the corresponding thread on the left or right of the Side Rib Brace.
2. Use a 4mm Hex Key to secure the Side Rib in place.
Riser to LeftField Mini
Left
1. Align the Riser’s mounting holes with the two M4 threads on the outer edge of the LeftField Mini Baseplate – on the same side as the release clamp.
2. Use a 3mm Hex Key to tightly screw the M4 threads through the Riser and the Baseplate.
Middle
1. Align the profile of the middle part of the Riser, aligning the M4 screw threads and ensuring that the Riser plate is centred.
2. Use a 3mm Hex Key to tightly screw the M4 threads through the Riser and the Baseplate.
Right
1. Line up the orange safety stop with the corresponding port on the LeftField Mini Baseplate, sliding it in until the M4 screw threads are aligned.
2. Use a 3mm Hex Key to tightly screw the M4 threads through the Riser and the Baseplate.
Dovetail to Riser
1. Slide the dovetail plate in through the front of the baseplate, until it is optimally aligned and balanced. Dovetails can only be loaded from the front.
2. When in place, use the ratcheting lever clamp to secure the Riser.

Based in the UK, Bright Tangerine’s products are designed and manufactured to the highest standards of quality. Built as practical solutions to filmmaking problems, each accessory is tested rigorously to meet the standards of some of the largest productions in the world. Our customer service team offers unparalleled support for all of our products, and can help advise or assist on a range of matters.

Warranty

Dimensions	20 x 15 x 15 cm
