Description

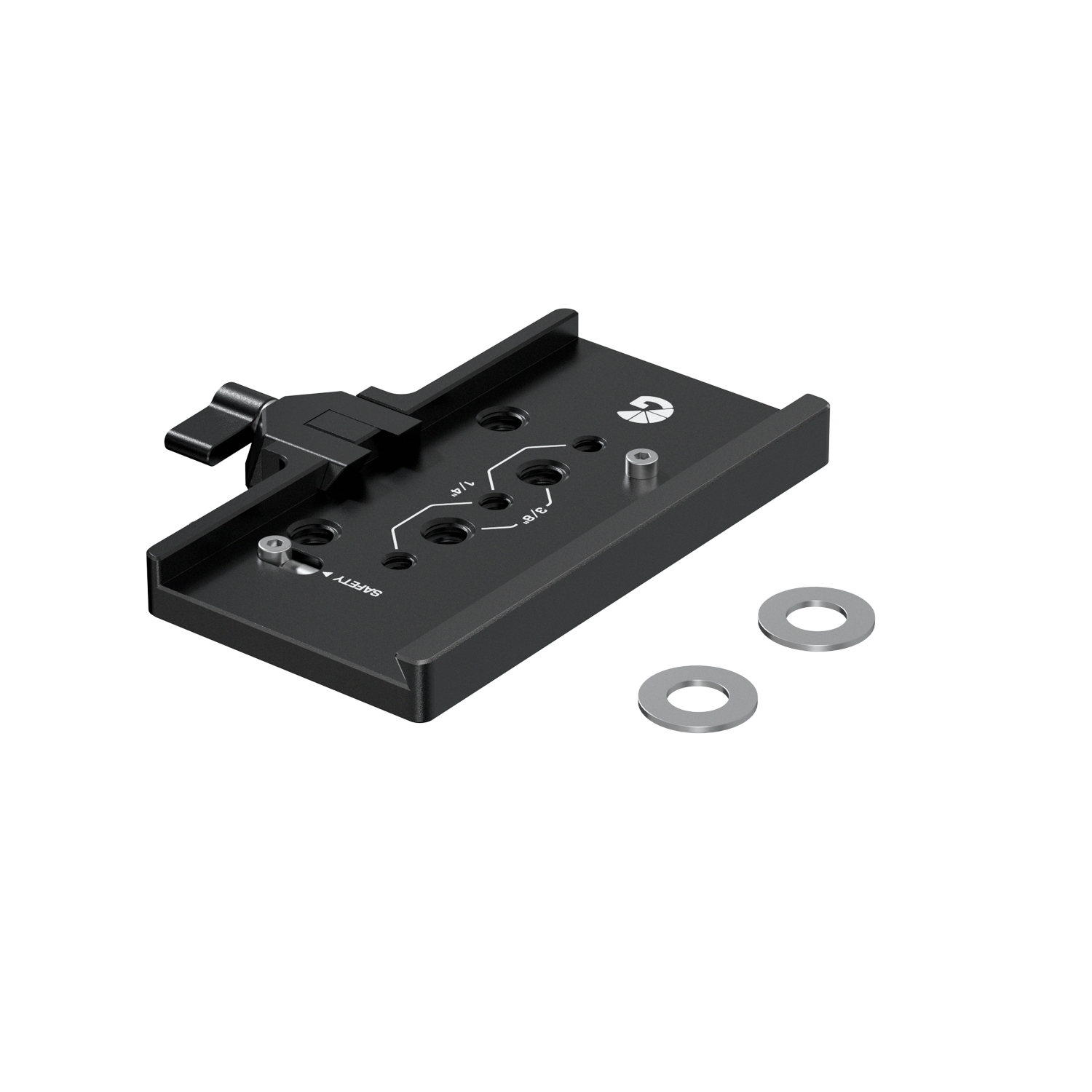

The DJI/Manfrotto Receiver for 15mm and 19mm Studio setups allows users to conveniently secure or quickly release a DJI dovetail on LeftField 3 15mm Studio or 19mm Studio baseplates.
Combined with our Universal Dovetail, this sets certain cameras like the Fujifilm GFX ETERNA to the correct optical height.
- Dual Mounting – Mount DJI and Manfrotto dovetail plates using the Receiver – including our Universal Dovetail.
- Included Washers – To prevent the mounting screws from being too deep in the baseplate, the Receiver comes with two washers.
- Fujifilm Studio Setups – The Receiver sets the Fujifilm GFX ETERNA to the correct height for 15mm and 19mm Studio.
- Multipurpose – The Receiver can be used on other setups via the 1/4″ and 3/8” mounting threads.
The DJI/Manfrotto Receiver comes with the required screws and washers. You will need a flathead screwdriver in order to install.
1. Align the washers with the two 3/8” threads on bottom of the camera-right side of your Baseplate.
2. Align the Receiver on top of the Baseplate with the clamp also on the camera-right side.
3. Insert the two 3/8” screws through the Baseplate and Receiver, and tighten them with a flathead screwdriver.
The DJI/Manfrotto Receiver is compatible with both our LeftField 3 15mm Studio Baseplate and our LeftField 3 19mm Studio Baseplate. However, the Receiver can also be mounted via any standard 1/4" and 3/8” screws via its central screw threads.
The Receiver is compatible with both DJI and Manfrotto standard dovetails – including our Universal Dovetail that serves dual capabilities as both.
Fujifilm GFX ETERNA shooters can combine the Receiver, Universal Dovetail and either baseplate to set their camera to the correct optical height. Other camera systems will not be the correct height and will require a compatible Riser Shim.
Bright Tangerine are based in the UK with a team of industry experts in design, engineering and – of course – filmmaking. Products are researched and developed extensively across multiple departments, with the goal of being long-term problem-solving products for professionals. Our customer support team is on-hand to advise and help, in the unlikely event that you encounter an issue with any of our goods or services.
| Weight | 0.16 kg |
|---|---|
| Dimensions | 11.2 x 8.7 x 1.1 cm |
| Camera brand | Fujifilm|Universal |
| Camera model | Universal|Fujifilm GFX ETERNA 55 |
| Dovetail standard | DJI RS 4|Manfrotto (501PL) |
| Range | LeftField 3 |
| Riser type | Quick Release (DJI/Manfrotto) |
| Rod standard | 19mm Studio |
