Canon C400 Top Plate Filler Piece
B4005.1031
B4005.1031
$49.00
Skip to product information
Description

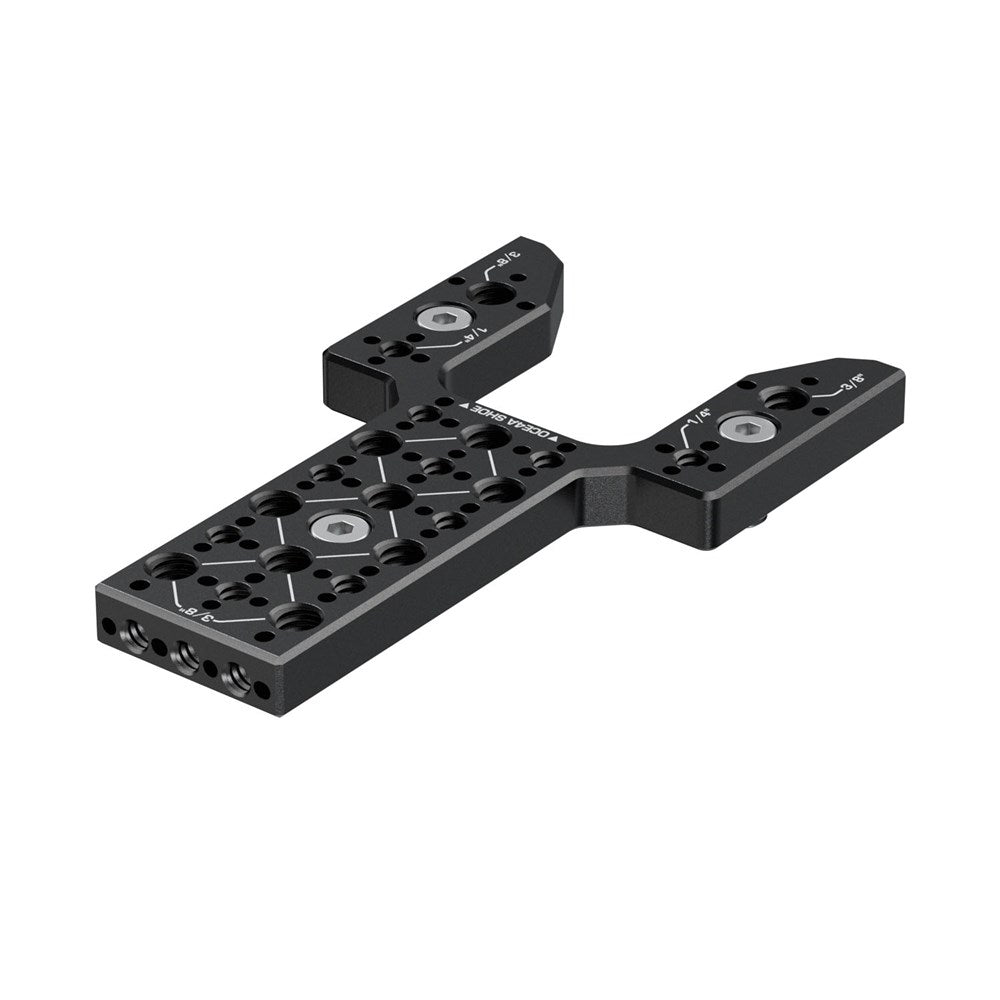

Designed to be used in conjunction with our C400 Top Plate, our C400 Top Plate Filler gives you as flat surface for rigging your Canon C400.
The plate fills in the top section of the C400 with a central line of threads for use with top handles, gimbal plates & more – whilst leaving the shoe mount accessible.
- Threaded ¼” & 3/8” Points – A row of centre-threaded mounts are ideal for top handles, gimbal plates and accessories.
- Flat Surface – the top plate filler provides a versatile base for accessories.
- Modular Component – The plate filler combines with B4005.1030 – Canon C400 Top Plate to form a flat platform for customisation
- Multifunction Shoe Access – The plate can be used with accessories requiring the multifunction shoe.
- Reliable Build Quality – Made from anodised aluminium, this top plate has guaranteed longevity.
Tools Required
3x 1/4"-20 screws, 4mm Hex Key
Assembly
1. To install the top plate filler, align the top plate filler’s three screws with their inputs on the Canon C400.
2. Use a 4mm Hex Key to screw the three 1/4”-20 screws into the top of the Canon C400, ensuring that they are aligned with the corresponding slots on the camera’s top.

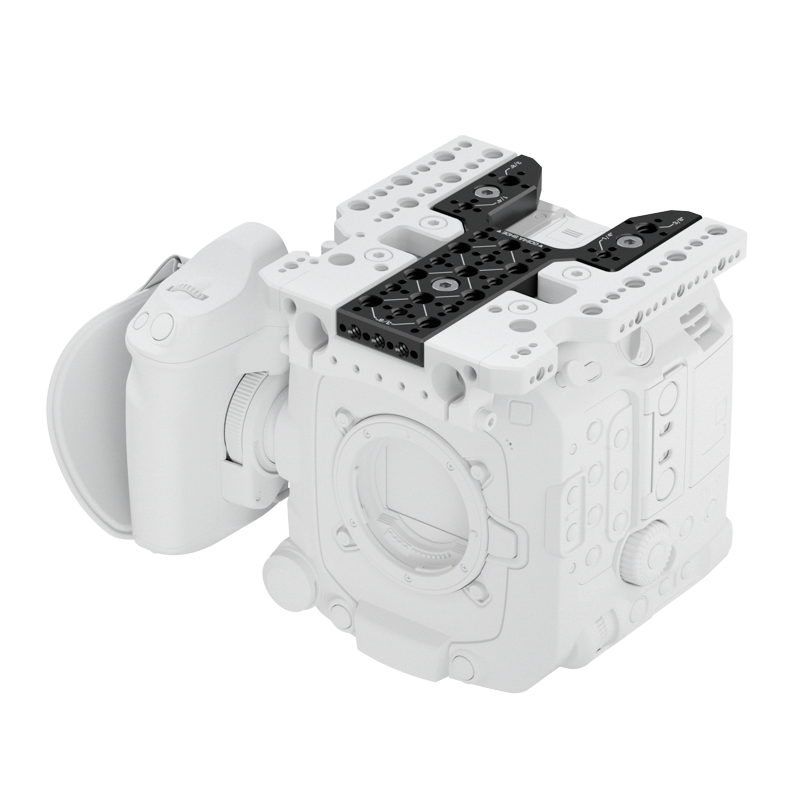

3. The top plate filler should sit level on top of the camera.
3x 1/4"-20 screws, 4mm Hex Key
Assembly
1. To install the top plate filler, align the top plate filler’s three screws with their inputs on the Canon C400.
2. Use a 4mm Hex Key to screw the three 1/4”-20 screws into the top of the Canon C400, ensuring that they are aligned with the corresponding slots on the camera’s top.
3. The top plate filler should sit level on top of the camera.
| Weight | 0.143 kg |
|---|---|
| Dimensions | 13.8 x 8.2 x 1.1 cm |
| Camera brand | Canon |
| Camera model | Canon C400 |
