Arca Riser Mk II
B4013.1119
B4013.1119
$35.00
Skip to product information
Description

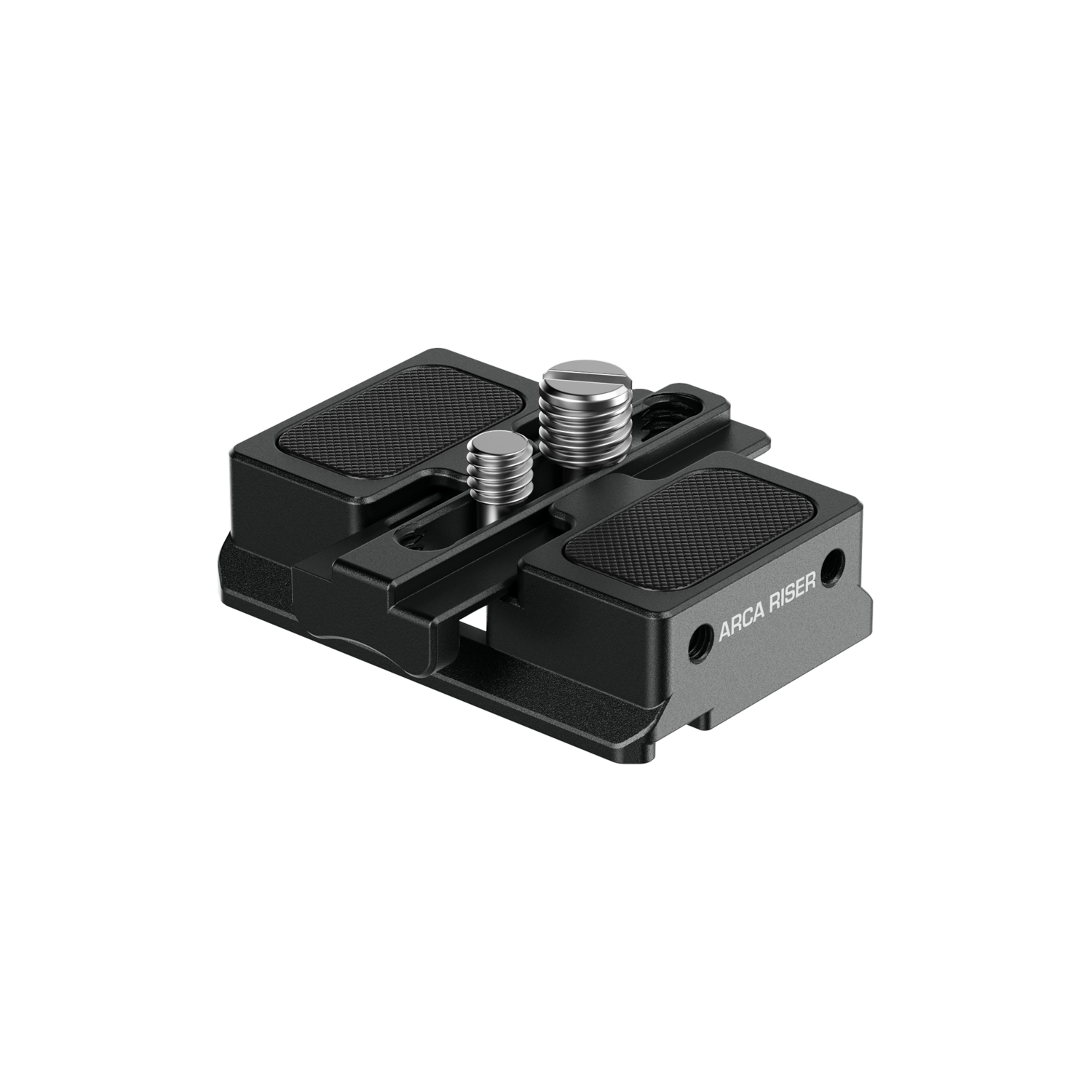

The Arca Riser is a dedicated 15mm riser for cleanly attaching your camera to any standard Arca mount. Compatible with any camera, the Riser is ideal for smaller cameras and features and adjustable lip to secure them in place.
Offering 15mm of effective height, the Arca Riser provides a convenient mounting point for minimalist setups.
- Arca-Compatible – The Riser works with any standard Arca receiver.
- 15mm Rise – The plate offers 15mm of effective height.
- Anti-Twist Support – An adjustable front lip secures the camera in place.
- Ideal for Smaller Cameras – The Riser is installed via captive screws.
- Ideal for Quick-Release – Combine with our Arca Receiver for quick-release camera setups.

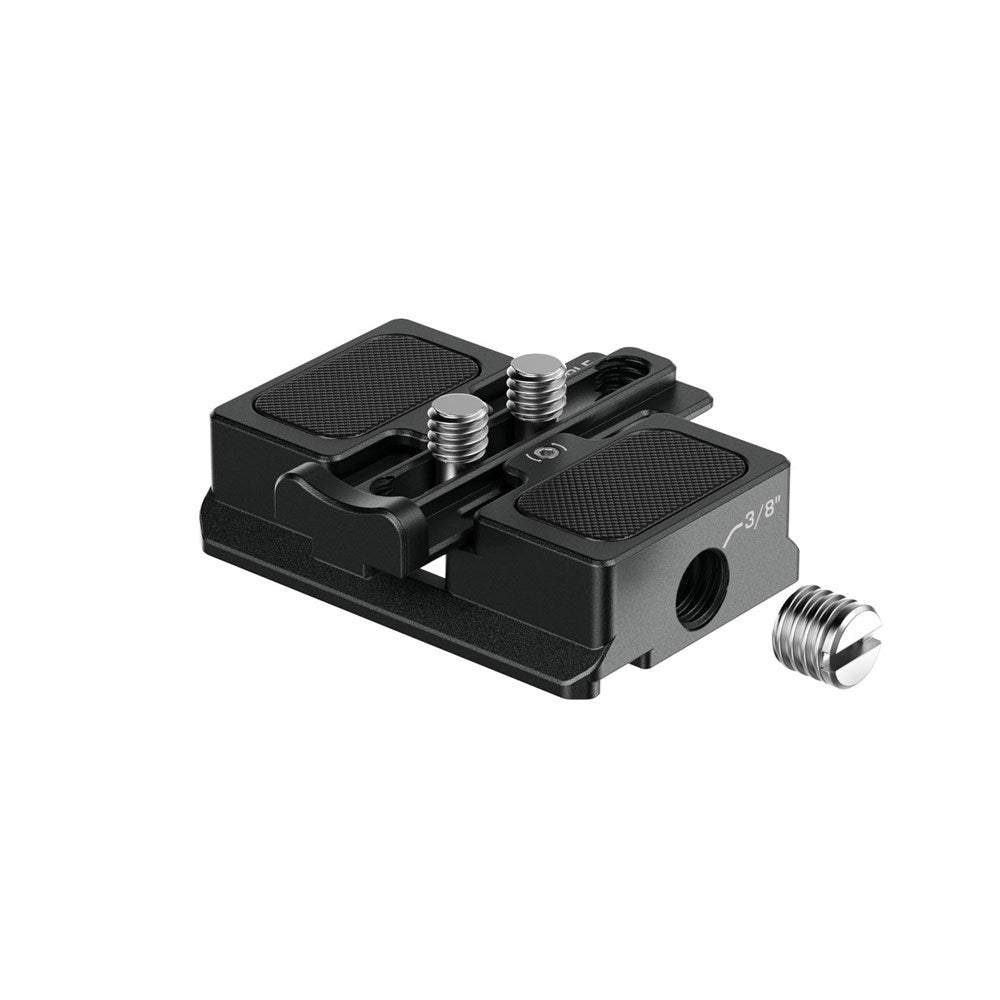

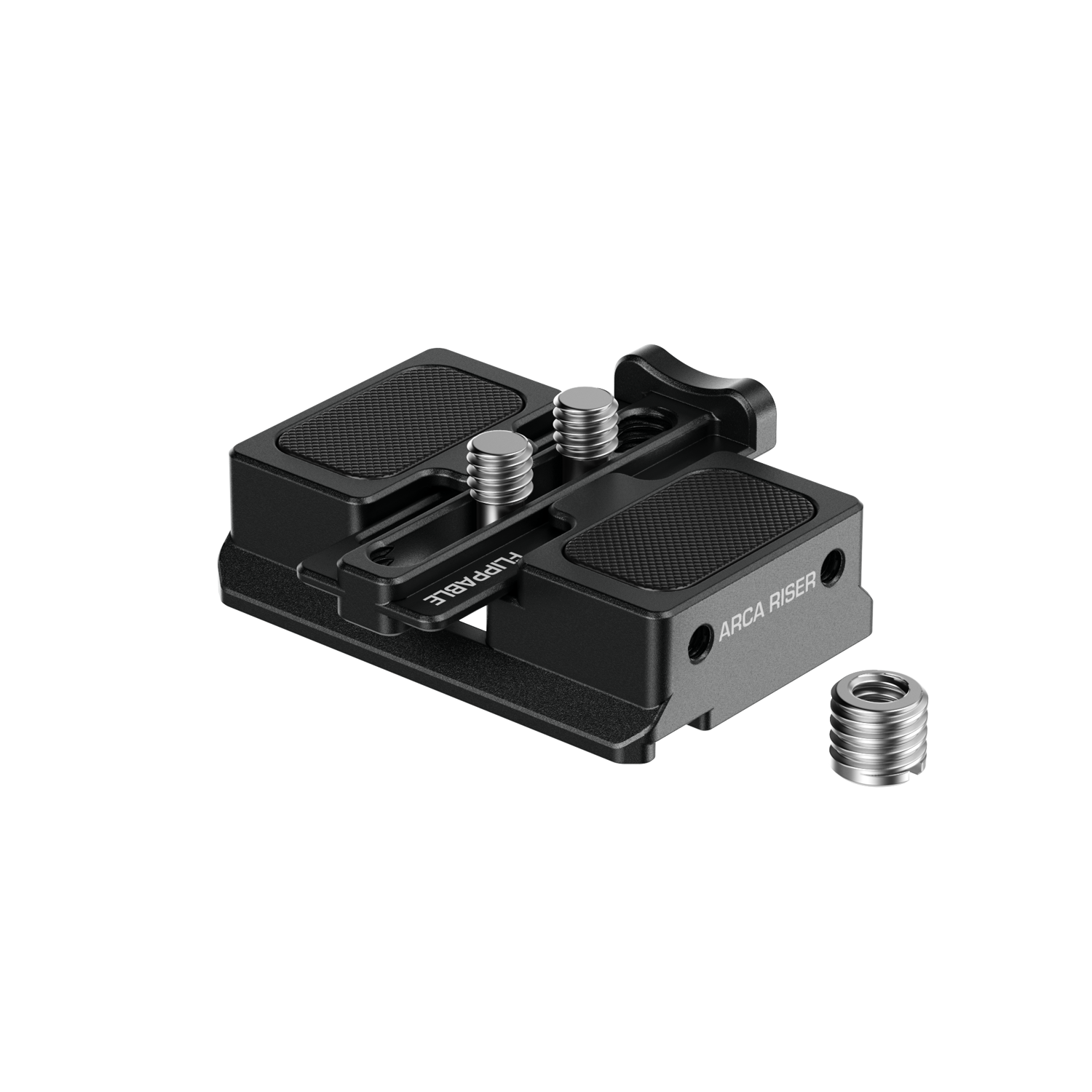

Adapting the 1/4" Screw
1. Unscrew the 3/8” Adaptor from its socket on the side of the Riser.
2. Screw it over either of the 1/4" screws.

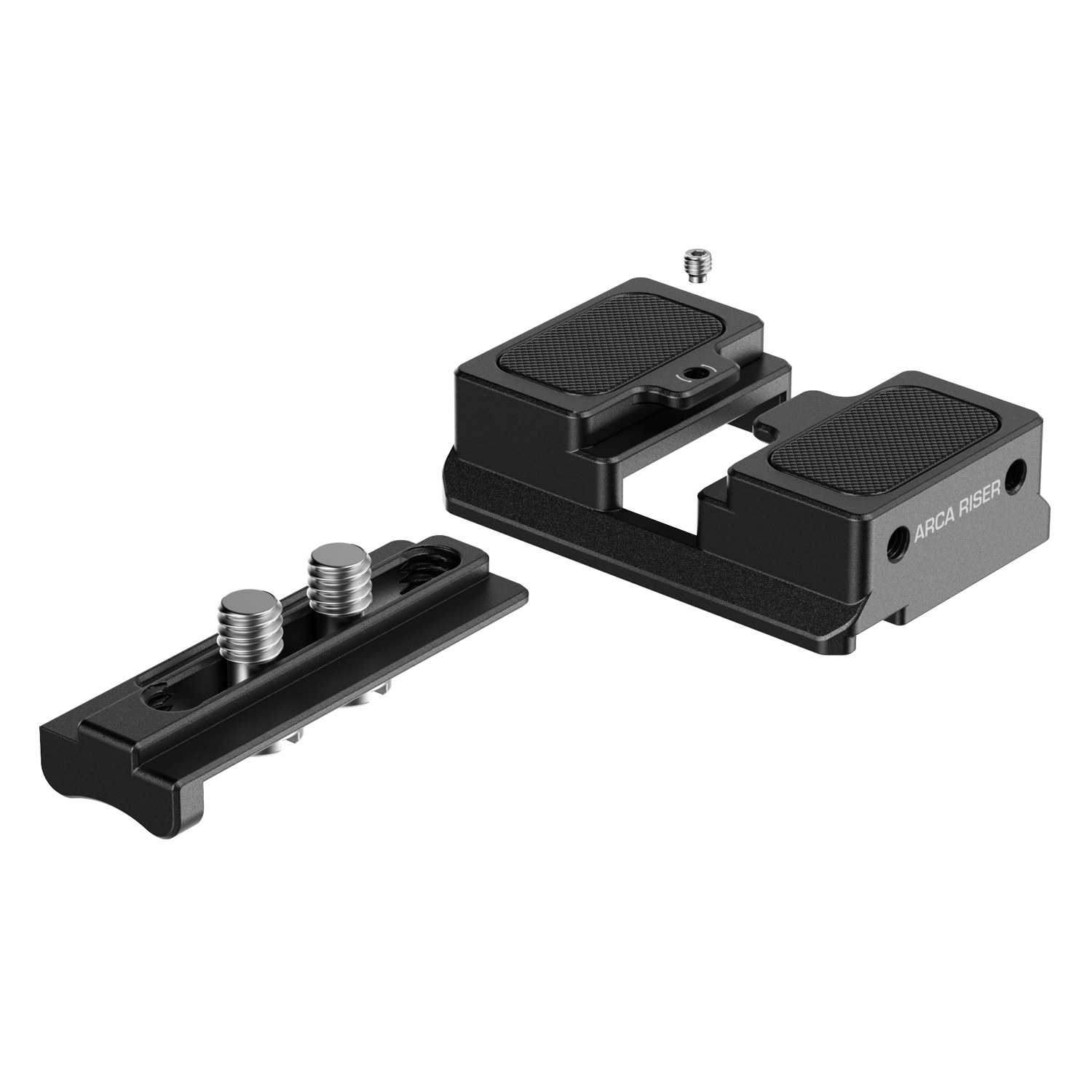

Removing the Front Lip
1. Use a 1.5mm Hex Key to remove the grub screw and slide the front lip out of the Riser.
2. Slide out the two captive screws and reverse them.
3. Slide the front lip back into the Riser.
Arca Riser to Camera
1. Align the 1/4”-20 and/or 3/8”-16 screw thread with the base of your camera.
2. Use a flathead screwdriver to tighten the Riser to your camera body.
Arca Riser to Arca Receiver
1. Slide your Arca plate sideways along the Arca Receiver (following the direction indicated by the arrows).
2. When clicked into place with the safety stops, secure with the orange locking lever.
The Arca Riser is compatible with any standard Arca Receiver, and can be used with any camera that has a 1/4"-20 and/or 3/8”-16 screw thread in the base. The 1/4" screw can be adapted into a 3/8” via the side-mounted adaptor.
The camera size limit is 38mm from the front of the screw to the front of the camera. If the distance of the screw to the front of the camera is less than the minimum, then the front of the camera won't be held by the support and there will be a gap. The plate will still work, but it won't have full anti-twist support.
The camera size limit is 38mm from the front of the screw to the front of the camera. If the distance of the screw to the front of the camera is less than the minimum, then the front of the camera won't be held by the support and there will be a gap. The plate will still work, but it won't have full anti-twist support.
Bright Tangerine products are manufactured in the UK by a team of industry experts in design, engineering and – of course – filmmaking. Products are researched and developed extensively across multiple departments, with the goal of being long-term problem-solving products for professionals. Our customer support team is on-hand to advise and help, in the unlikely event that you encounter an issue with any of our goods or services.
| Weight | 0.055 kg |
|---|---|
| Dimensions | 5.5 x 5.2 x 2.1 cm |
| Camera brand | Universal |
| Camera model | Universal |
| Dovetail standard | ARCA |
