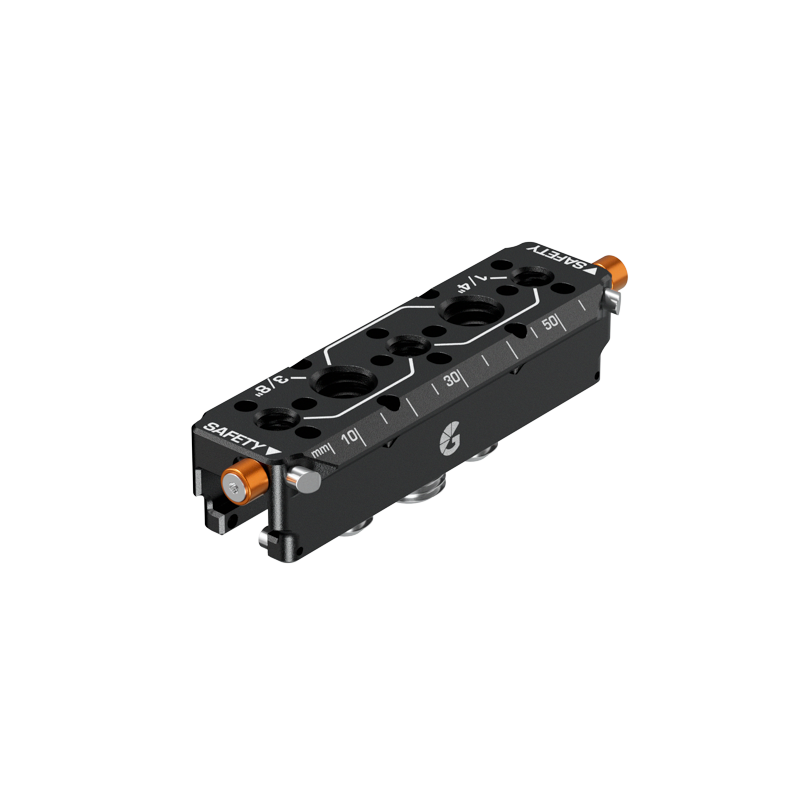

Universal 60mm NATO Rail

Description

Make rigging easier with the Universal 60mm NATO Rail. Mount it from any part of your camera rig via the sliding screws, and use it as a base for mounting a huge range of NATO accessories. With 60mm of sliding travel, marked by laser-engraved position markers and protected by safety stops at either end; the NATO Rail is a low-profile yet versatile addition to your top, side or rear plate.

Made from our signature high-grade aluminium, the NATO Rail is guaranteed to offer top performance.

Quick-Release Convenience

Need quick and easy access to a component on your rig? The NATO Rail is the perfect solution. Simply slide your accessory into place and tighten the clamp – but even if you forget that second step, the NATO Rail comes with easy-press safety stops on both ends to prevent accidental releases.

Position with Precision

If you need to accurately balance accessories on your rig, such as our NATO Top Handle, the NATO Rail has precisely engraved position markers all along the central 60mm between the safety stops. This allows you to easily place accessories in the exact centre of the Rail, or precisely along the rest of its length.

Clean Mounting

The NATO Rail can be attached to any 3/8” or 1/4″ screw thread, thanks to the trio of screws in the base. These screws are able to slide the length of the Rail to match your mounting point, whilst also being captive so you don’t lose them when loosened. If any of the screws get in the way, you can remove them.

Dual Functionality

The NATO rail also features a line of 1/4″ and 3/8” screw threads along the centre, giving you additional mounting options for your rig. Each features ARRI anti-twist pin threads, giving you extra security when attaching accessories.

Part of the LeftField System

Bright Tangerine’s Universal Camera Accessories are – appropriately – designed to be universal. Capable of being used on practically any camera system or rig construction, these accessories are ideal for filmmaking professionals at any level: from run-and-gun videography to high-budget cinematic filmmaking.

Instructions/Assembly

The Universal 60mm NATO Rail comes with all required screws and components. You will require a 3mm Hex Key in order to install it, and a 1.5mm Hex Key in order to remove unnecessary mounting screws.

1. Align two or more of the captive screws with threads on your camera plate.

2. Use a 3mm Hex Key to tightly screw the NATO rail to the plate.

Removing Mounting Screws

1. Use a 1.5mm Hex Key to remove the safety stop on the underside of the Rail.

2. Remove any screws that aren’t needed.

3. Replace the safety stop.

Compatibility

The Universal 60mm NATO Rail is compatible with a wide range of camera plates and mounting points, thanks to its captive 1/4″and 3/8” screws. The top of the NATO rail features both a NATO rail as well as 1/4″ and 3/8” anti-twist screw threads for accessory mounting.

Zero Compromises

From our UK base, we manufacture camera accessories to the highest standards of quality and sustainability. All products are designed and engineered rigorously, to maximise their usefulness to professional filmmakers. If you encounter any issues with our products, our customer service team is on-hand to help you however you may need.

Warranty

24 months
