Titan Arm 2 Anti-Twist Adaptor (1/4″-20)

Description

Maximise your Titan Arm 2’s versatility with this conveniently-sized 1/4” Adaptor. This Adaptor conveniently converts your Titan Arm for use with 1/4” mounting sockets, and can be used at either end of the monitor arm. For different monitor standards, the Adaptor has removeable or spring-loaded locating pins: which can be discreetly stowed in the Adaptor body.
Expand on the potential of your Titan Arm 2 with this reliable and durable adaptor: purpose-built for the Titan Arm 2.

Convenient Mounting Options

With this adaptor, the Titan Arm 2 is capable of being installed with any 1/4” accessory – and conversely, it can be installed onto any 1/4” mounting slot. Thanks to the Titan Arm 2’s ball-and-socket joints, this gives you unprecedented freedom to adjust and install components.

Expansive Possibilities

1/4”-20 mounts are near-universal, and so are the possibilities for using this adaptor. Though the Titan Arm 2 Anti-Twist Adaptor is primarily designed for mounting monitors, this adaptor broadens its capabilities. Ideal for the more experimental filmmaker or complex rigs with limited space, you can position the arm or compatible equipment anywhere.

Multiple Monitor Standards

For specific monitors, the Titan Arm 2 Adaptor comes with dedicated anti-twist locating pins; conforming to different monitor standards including Atomos, SmallHD and ARRI. With the two central pins being spring loaded and the rest removeable and stored within the Adaptor body, you can always ensure that your monitor is correctly mounted.

Part of the Titan Arm System

The Titan Arm 2 revolutionises the monitor arm market with an innovative redesign of our bestselling Titan Arm. With interchangeable mounts at both ends, the Titan Arm 2 offers expansive possibilities for mounting and use, and is built with Bright Tangerine’s objective of sustainability at the forefront of the design. Expand your possibilities with the Titan Arm 2 today.

Instructions/Assembly

The Titan Arm 2 Anti-Twist Adaptor comes with all required screws, pins and parts. You will require a 2.5mm Hex Key to install and a flathead screwdriver for removing locating pins.

Adaptor to Titan Arm

1. Align the base of the Adaptor with the ball-and-socket joint of the Titan Arm. Lower it into place so that the countersunk M4 screw threads are aligned.

2. Insert the M4 screw through the Adaptor and use a 2.5mm Hex Key to secure it in place.

Adjusting Locating Pins

1. To remove unnecessary locating pins, use a flathead screwdriver to carefully unscrew them from the top of the Titan Arm Adaptor.

2. Stow the locating pin in one of the marked niches on the side of the Adaptor.

1/4″ Thread to Adaptor

1. Align your item’s 1/4” screw thread with the thumbscrew, making sure to remove and stow any unnecessary locating pins.

2. Twist the thumbscrew into position, using a 2.5mm Hex Key to tighten if necessary.

Compatibility

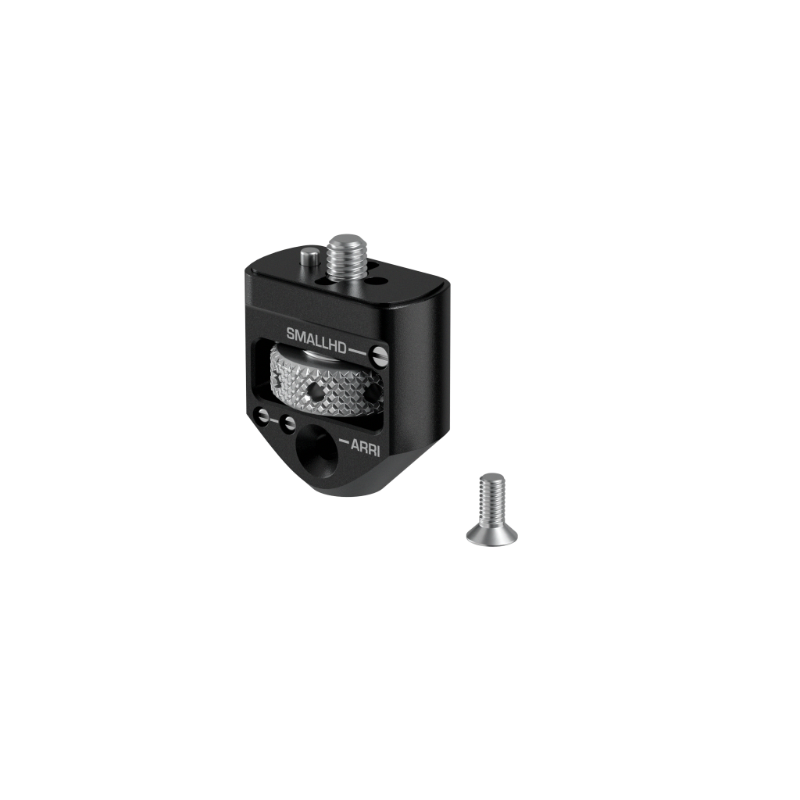

The Titan Arm 2 Anti-Twist Adaptor (1/4”) is compatible with the Titan Arm 2’s ball-and-socket joints at either end. The 1/4” screw is compatible with a range of industry-standard mounting points, and has two spring-loaded anti-twist pins – in the Atomos standard configuration – to help locate your device.

For monitors, there are additional locating pins in the SmallHD and ARRI standard, which can be removed with a flathead screwdriver.

The M4 screw required to secure the Anti-Twist Adaptor to the Titan Arm is 10mm in length, whilst the screw for the non-anti-twist variants is 8mm in length and the NATO Adaptor’s is 12mm in length.

Zero Compromises

Based in the heart of the UK, Bright Tangerine are committed to the highest standards of quality. Researched, designed and tested by a team of experts; our products are the number-one choice of professional filmmakers worldwide. Our customer support team are on hand to help with any product issues, and provide the most reliable advice on all of our products.

Warranty

24 months
