Rear Plate for Sony VENICE Extension System Mini

Description

Expand the possibilities of your Sony setup with our bespoke Rear Plate for the Sony VENICE Extension System Mini. Snugly conforming to the camera’s tiny profile, the Rear Plate adds a range of accessory mounting options with the 1/4″, 3/8” and MAP M4 threads.

A clean and stylish rigging option, the Rear Plate expands the options of the VENICE Extension Mini without interfering with any of its stock features.

Customise without Compromise

The Rear Plate for Sony VENICE Extension System Mini sits discreetly on the back of the camera extension block, leaving space for the connecting cable and for you to comfortably hold the camera. With the major unique selling point of the VENICE Extension Mini being it’s size, this strikes the perfect balance for both clean and complex rigging.

Ready for Rigging

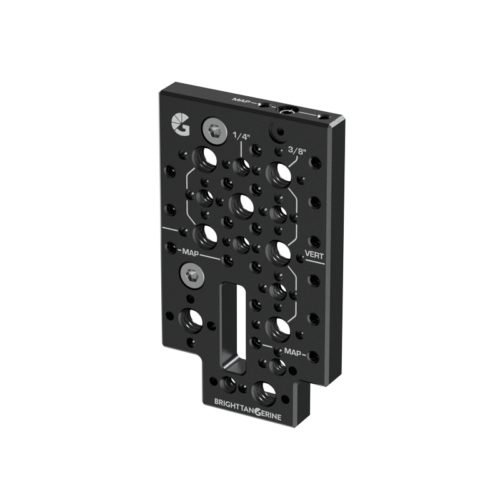

The Rear Plate features a suite of industry-standard mounting points: six 3/8” threads and six 1/4″ threads, in the ARRI Pin-Lock standard array. All screw threads feature anti-twist points for locating pins, ensuring mounted accessories are held firmly in place. There are also MAP M4 points bordering the plate for additional accessorising.

Simple Installation

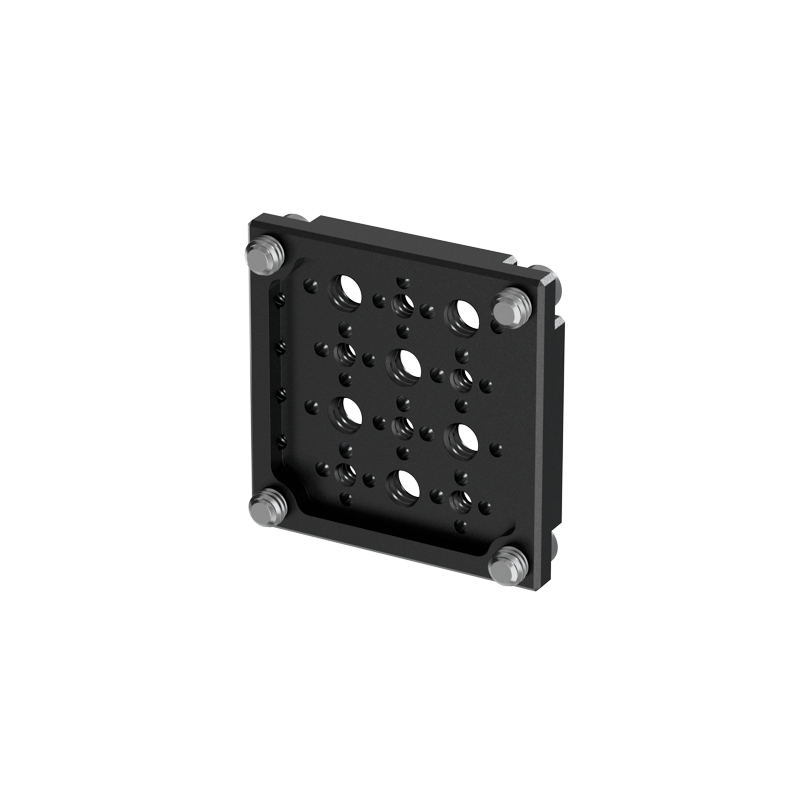

The Rear Plate mounts to four M4 screws on each corner of the VENICE Extension Mini, cleanly and securely attached with a few turns of a 4mm Hex Key. This keeps downtime to a minimum: if you decide to use the VENICE in “Rialto” mode, you can be fully rigged up in moments.

Lightweight Shooting

Designed to perfectly complement the VENICE Extension Mini’s lightweight and low-profile build, the Rear Plate is made from aerospace-grade aluminium. This keeps the weight down without sacrificing strength, with the aluminium being hard-anodised for wear and corrosion resistance. Don’t be fooled by its minimal weight: the Rear Plate is built to last.

Part of the Sony System

The Sony VENICE Extension System Mini is the next step in cinematic convenience, and our bespoke range of accessories for the camera sensor block mean you don’t have to compromise on customisation. Lightweight and robust, our accessories give you the freedom to shoot comfortably no matter the situation.

Instructions/Assembly

The Rear Plate for Sony VENICE Extension Mini comes with all required screws, but you will need your own 4mm Hex Key to install it.

1. Align the Rear Plate with the back of the VENICE Extension Mini, so that the text is facing upright.

2. Use a 4mm Hex Key to tightly secure the Rear Plate to the camera extension block.

Compatibility

The Rear Plate for Sony VENICE Extension Mini is designed to cleanly mount to the VENICE Extension Mini alone, with space for the connecting cable that leads to the VENICE 2. The array of MAP M4, 1/4″ and 3/8” threads are suitable for a range of industry-standard accessories.

Zero Compromises

Based in the UK, Bright Tangerine’s products are designed and manufactured to the highest standards of quality. Built as practical solutions to filmmaking problems, each accessory is tested rigorously to meet the standards of some of the largest productions in the world. Our customer service team offers unparalleled support for all of our products, and can help advise or assist on a range of matters.

Warranty

24 months
