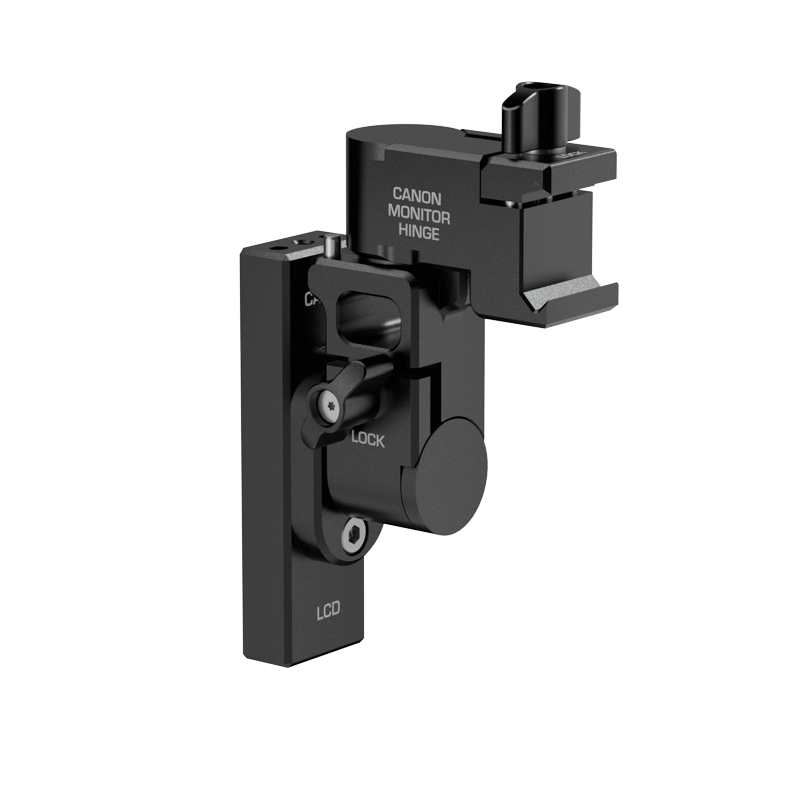

NATO Monitor Hinge for Canon LCD

Description

Create the perfect Canon C400 rig with this easily-adjusted NATO Monitor Hinge. The two-axis hinge provides a versatile monitor mounting solution for Canon shooters: offering 180-degree panning rotation and a full 360-degree tilt.  Easily adjust the monitor on-the-fly, and capture the perfect shot from any angle with ease.

Compatible with Canon LCD Monitors, the Monitor Hinge mounts to any standard NATO rail.

NATO Compatibility

The NATO rail is one of the most convenient means of attaching and detaching camera accessories, allowing sliding travel to optimise monitor placement. This means that you have plenty of options for mounting the NATO rail, including our 15mm NATO Rail or NATO Cheese Stick.

Independent Locks for Pan and Tilt

The hinge includes independent locks for both pan and tilt, enabling faster adjustments while ensuring the monitor remains stable and precisely positioned. This also means that you can lock-off one axis whilst maintaining articulation on the other. There is a spring-loaded safety stop in the mechanism that helps you lock the Monitor Hinge in the home position.

Easily Stowed

For safe transport, the hinge allows you to rotate the monitor inward, tucking it within the rig. A hard stop means that the monitor won’t hit the camera body – with a ball indent providing haptic feedback. This protective feature helps shield the monitor from impact during transit, ensuring that your monitor is secure and ready for your next shoot.

Locked Horizon

The hinge is designed to maintain a steady horizon, preventing unwanted shifts or axis drift that could impact your framing. With this stability, you can focus on capturing the perfect shot without frequent adjustments.

Convenient Drag Adjustment

For refining resistance, the Monitor Hinge allows you to add extra friction simply by slightly loosening the respective lever clamps. If you find you want to tilt your monitor mid-shoot, then simply leave the tilt lever slightly loose – the level of resistance is based on how loose you leave the lever.

Designed for Canon LCD Monitors

With a dedicated mounting block for the Canon LCD monitor, the monitor hinge provides stability for customising your Canon camera. The block helps to ensure correct installation, with locating pin holes that align with the monitor for anti-twist.

Built to Last

The monitor hinge is made from our flagship aerospace-grade aluminium, for a high-quality finish whilst maintaining a light weight. This material is wear and corrosion-resistant, meaning that this low-profile monitor hinge will last a long time without issue.

Instructions/Assembly

The NATO monitor hinge ships assembled as a standalone unit, including the required screws.

You will require a 3mm and a 4mm Hex Key in order to install the Monitor Hinge.

Monitor Block to Monitor

1. Align the captive 1/4″-20 screw of the Monitor Block with the thread on the Canon LCD Monitor

2. Use a 4mm Hex Key to screw the two together.

Monitor Block to Hinge

1. Align the Monitor Block’s thread and locating pins with the Monitor Hinge.
2. Use a 3mm Hex Key to screw the Hinge to the Block.

Compatibility

The Canon range is designed to work with Canon LCD monitors, using industry-standard mounting points. The NATO Monitor Hinge for Canon is designed specifically with Canon LCD monitors including:

Canon C400 LCD Monitor

Canon LM-V2 LCD Monitor for Canon C500 Mark II & C300 Mark III

What’s Included

1x B4005.1033 – NATO Monitor Hinge for Canon

Part of the Canon System

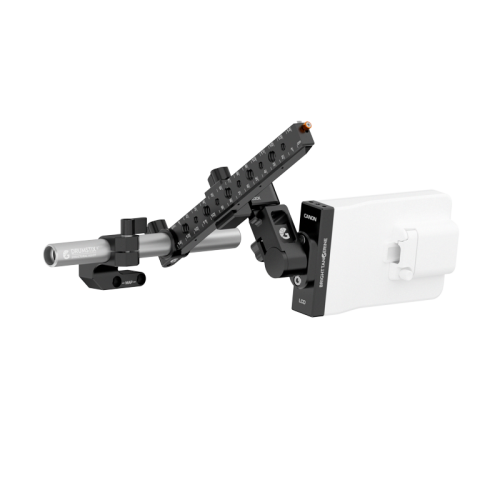

The Canon C400 sets a new standard for high-end video content creation, and Bright Tangerine is here to elevate that standard further. With a suite of accessories purpose-built for the C400, you’ll be able to construct the perfect camera rig no matter the shooting scenario. Other products in the C400 range include:

Zero Compromises

Absolutely no compromise has been made in our manufacturing process. Our engineering is focused on creating products that are both high-performance and enabled with a longer life of service. Combine that with unparalleled level of Bright Tangerine support, and your camera system becomes the most reliable and hard-working partnership that any filmmaker could wish for.

Warranty

24 months
