LeftField Mini Standard Riser (54mm)
$49

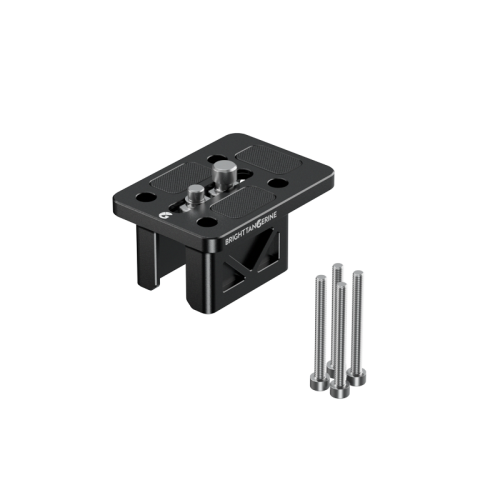

The LeftField Mini Standard Riser helps set certain cameras to the 15mm LWS height standard on the LeftField Mini baseplate. Cleanly mounting to the LeftField Mini, this Riser is designed for cameras with an optical centre height of 54mm such as the RED V-RAPTOR
Quickly installed to the baseplate via four M4 screws, the Riser features captive 1/4″ and 3/8” screws that can be repositioned to fit different camera bodies.
- 15mm Height Rise – The Riser elevates cameras for 15mm LWS setups.
- Captive Screws – For attaching to cameras, the Riser features captive 1/4″ and 3/8” screws for fitting different cameras.
- Designed for LeftField Mini – Mount compact camera setups onto the LeftField Mini: almost half the size of a standard baseplate.
- Clean Installation – Mount the Riser to the LeftField Mini with just four M4 screws.
In stock
Description
Take your rig to new heights with our range of LeftField Mini standard Risers, which elevate different cameras to the 15mm LWS standard height. This model adds 31mm of height: making it suitable RED V-RAPTOR cameras, setting the optical centres to the correct height.
Made from our signature high-grade aluminium, the Riser mounts cleanly to the LeftField Mini baseplate via M4 screws – and features sliding 1/4″ and 3/8” screws for different camera bases.
Ready for Rigging
Paired with the LeftField Mini Baseplate, the Riser sets your camera system to the 15mm LWS height standard: expanding the options for attaching follow-focus wheels, matte boxes and more. For shorter cameras, such as the Blackmagic URSA Cine, the 54mm Riser is the perfect choice for added elevation.
Clean Installation
The Riser installs easily to the LeftField Mini baseplate with just a handful of M4 screws and few turns of a 3mm Hex Key. For attaching your camera, captive 1/4″ and 3/8” screws attach to compatible cameras – and can slide to optimise balance. Rubber inlays on the top provide extra grip on the camera base, to prevent twisting.
Compact Clearance
The LeftField Mini baseplate is the perfect choice for minimalist rigs: the baseplate 40% shorter whilst still boasting full LeftField functionality. The Riser is the essential bridge between camera and baseplate – making sure that your rig is always ready.
Part of the LeftField System
The LeftField system of quick-release baseplates are the most convenient mounting option for professional filmmakers. Our patented Open•UP system allows you to cleanly mount your camera rig to any ARRI standard dovetail in moments, and release it just as quickly.
Instructions/Assembly
The LeftField Mini Standard Riser is a standalone unit that contains all required screws. You will require a 3mm Hex Key in order to install it.
1. Align the four M4 screws with the outer four channels on the LeftField Mini Baseplate.
2. Use a 3mm Hex Key in order to tightly screw the two together.
Compatibility
The LeftField Mini Standard Riser (54mm) is designed to add 31mm of elevation to cameras, raising the optical centre to the required 85mm height. Therefore the 54mm Riser’s compatibility includes, but is not limited to:
RED V-RAPTOR
Zero Compromises
Bright Tangerine are based in the UK with a team of industry experts in design, engineering and – of course – filmmaking. Products are researched and developed extensively across multiple departments, with the goal of being long-term problem-solving products for professionals. Our customer support team is on-hand to advise and help, in the unlikely event that you encounter an issue with any of our goods or services.
Warranty
24 months
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 8.6 × 5.3 × 3.799999 cm |
| Camera Brand | |
| Camera Model | |
| Range | |
| Riser | 15mm LWS |
