DJI Riser Shim (52.5mm-55.5mm)

Description

Elevate your camera setup with the DJI Riser Shim for LeftField Mini Baseplates: designed to elevate cameras to the correct height for gimbal shooting. Sitting between the LeftField Mini and DJI RS Receiver, the Riser Shim mounts cleanly and is intuitively designed to give the proper height clearance to cameras with low optical centres – see the “Compatibility” section below for a full list of compatible cameras.

Lightweight and wear-resistant, the 52.5mm-55.5mm Riser Shim is essential for compact shooting.

Designed for LeftField Mini

Want to mount more compact cameras to a DJI gimbal? Use the Riser Shim to set the cameras listed below to the correct height. With the LeftField Mini being a deliberately downsized version of our bestselling LeftField 3 Baseplate, the Riser Shim has been designed to maintain that same minimal form factor.

Compact Clearance

With Riser heights, you have approximately 3mm of leeway – which gives our Riser Shim the potential for a broad range of compatibility. For cameras with an optical centre distance of 52mm-55mm, such as the RED V-RAPTOR and V-RAPTOR X, this Riser Shim is ideal for elevating it on your Baseplate.

(Note: the Shim also factors in the added 14.75mm of height added by the Universal Dovetail)

Easy Installation

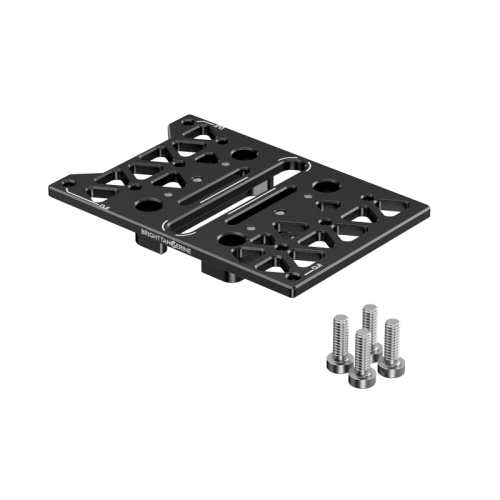

The Riser Shim mounts to your LeftField Mini’s central channel via four M4 screws, sitting snugly within the baseplate. The three marked screw threads on the corners are for the DJI Receiver: which is also installed with the same M4 screws and just a few turns of a 3mm Hex Key.

Part of the LeftField System

The LeftField system of quick-release baseplates are the most convenient mounting option for professional filmmakers. Our patented Open•UP system allows you to cleanly mount your camera rig to any ARRI standard dovetail in moments, and release it just as quickly.

Instructions/Assembly

The DJI Riser Shim comes with the required screws to attach it to the LeftField Mini Baseplate. You will require a 3mm Hex Key in order to install it.

Riser Shim to LeftField Mini

1. Align the four M4 screws with the central channels on the LeftField Mini Baseplate.

2. Use a 3mm Hex Key in order to tightly screw the two together.

DJI Receiver to Riser Shim

1. Align the three corner screws of the DJI Receiver with the threads marked “DJI” on the Riser Shim.

2. Use a 3mm Hex Key to tightly secure each of the three screws to the Riser.

Compatibility

The DJI Riser Shim bridges the gap between the LeftField Mini Baseplate and the DJI Receiver – setting specific cameras to the correct height for use on DJI RS gimbals. Cameras with an optical centre height between 52mm and 55mm are compatible with this Riser Shim, such as:

RED V-RAPTOR

RED V-RAPTOR XL

Zero Compromises

Bright Tangerine are based in the UK with a team of industry experts in design, engineering and – of course – filmmaking. Products are researched and developed extensively across multiple departments, with the goal of being long-term problem-solving products for professionals. Our customer support team is on-hand to advise and help, in the unlikely event that you encounter an issue with any of our goods or services.

Warranty

24 months
