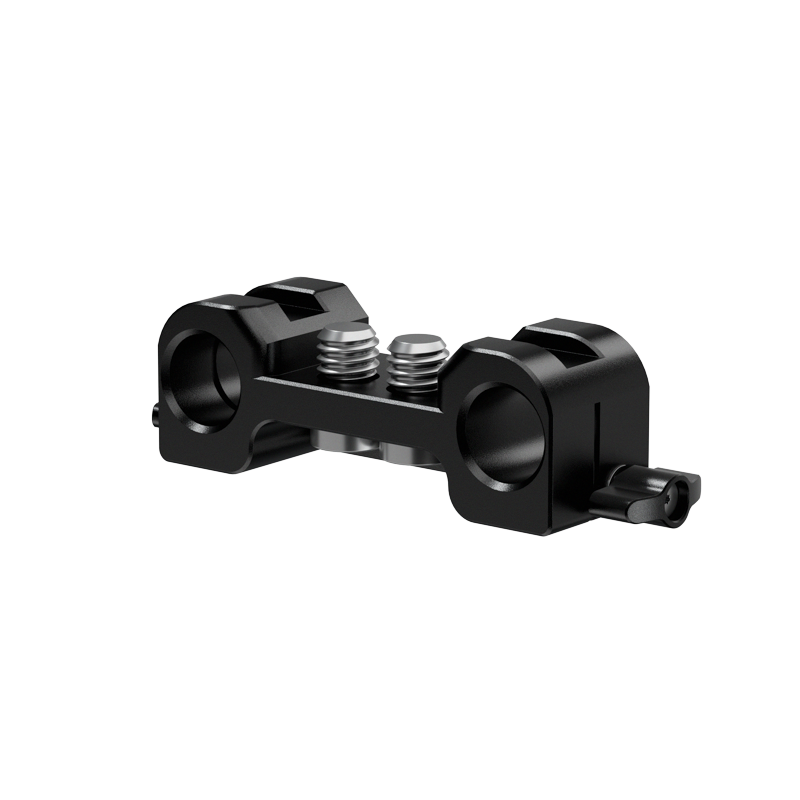

15mm LWS Rod Bracket for Universal Dovetail

Description

The 15mm LWS Rod Bracket for our Universal Dovetail is an essential tool for streamlining your rig. Paired with our Universal Dovetail, you can transform your rig with 15mm rod support – bridging the gap between dovetail and baseplate in a compact and lightweight tool.

Securing tightly to the underside of your dovetail, the rod bracket gives you expanded customisation options.

15mm Rod Support

The 15mm LWS Rod Bracket holds two 15mm rods with a 60mm spacing. Though not the full height for classic 15mm LWS rigs, it provides a range of customisation options and rigging possibilities without interfering with your dovetail.

Quick and Clean Installation

To add this bracket to your setup, simply tighten two captive 3/8” screws with an industry-standard 4mm Hex Key. Once in place, the bracket sits cleanly 13mm below the dovetail platform. The screw threads on the dovetail are anti-twist, meaning that your rig will be secure without wobble.

(Please note: there will be a small gap between the dovetail and bracket, even when fully installed. This is to allow the dovetail to sit correctly within the bracket without interference.)

Bridge the Gap

Our Halo Universal Camera Cage is the ultimate choice for convenient customisation for any camera, and our Universal Dovetail is the ultra-convenient means of mounting any camera system. With the 15mm LWS Rod Bracket, you can combine the two for a versatile setup for any camera.

Part of the Create System

The Create range from Bright Tangerine offers convenient, accessible and universal accessories for your camera. Whether it’s a modest stills camera or a full-fledged cinema setup, our Create accessories will provide the best performance.

Instructions/Assembly

The 15mm LWS Rod Bracket for Universal Dovetail comes with all required parts, including captive 3/8” screws. It requires a 4mm Hex Key in order to correctly install to the Universal Dovetail.

Dovetail to Rod Bracket

1. Align the two 3/8” screws on the top of the rod bracket with the threads on the base of the dovetail.

2. Use a 4mm Hex Key to tighten both screws into place.

Rods to Rod Bracket

1. Slide the 15mm Rods into their bracket until correctly positioned.

2. Use the lever clamps to tighten each bracket and secure the rods in place.

Compatibility

The 15mm LWS Rod Bracket is designed for the Universal Dovetail for Manfrotto and DJI RS 4. It installs to the dedicated 3/8” threads on the Dovetail’s base. It features two 15mm rod brackets spaced at 60mm apart – the standard 15mm LWS width.

However, the Rod Bracket does not set the rods to the 15mm LWS standard height. You will require a dedicated riser to ensure that your specific camera and other accessories are compatible.

Zero Compromises

Based in the UK, Bright Tangerine are industry leaders in sustainable and reliable camera component construction. A team of experts work hand-in-hand with professionals to craft camera accessories to the highest standard.  Each product is subject to rigorous testing, and is designed to complement even the most complex of camera setups. If you have any issues with our products’ promises, our customer service team are available to offer whatever help you may need.

Warranty

24 months
